Headliner bulkhead trim
From
£60.00
Professionally CNC cut from 6mm sustainably sourced ply
Free nationwide delivery!
To view our range of bespoke and standard colours please click the link below.

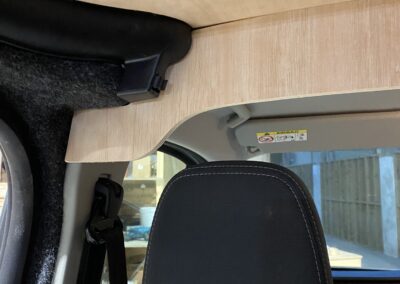

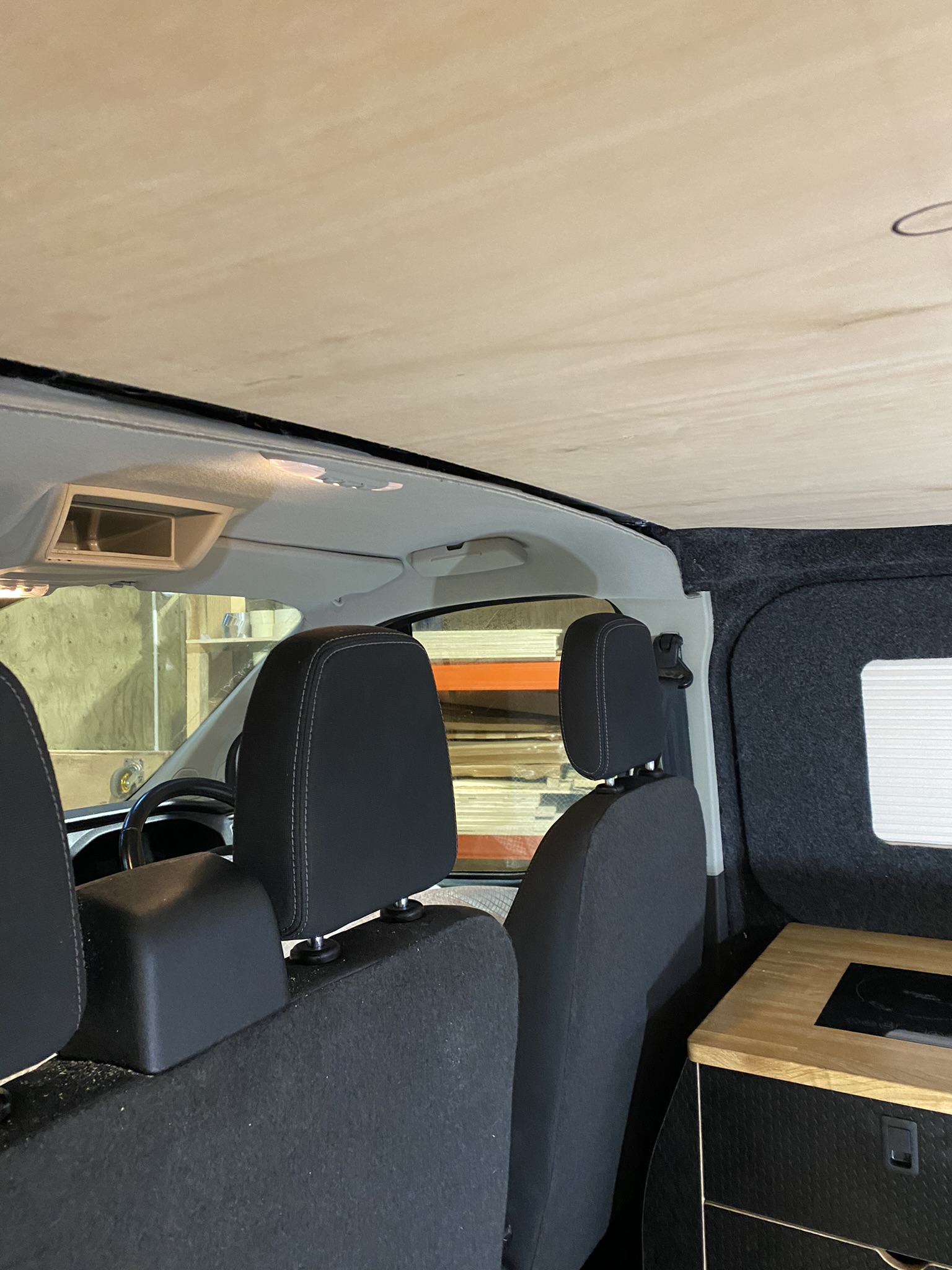

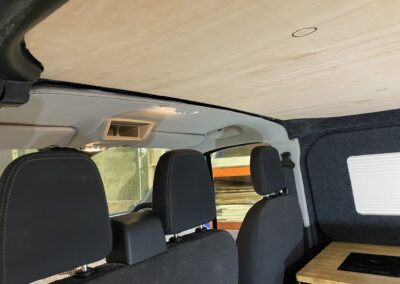

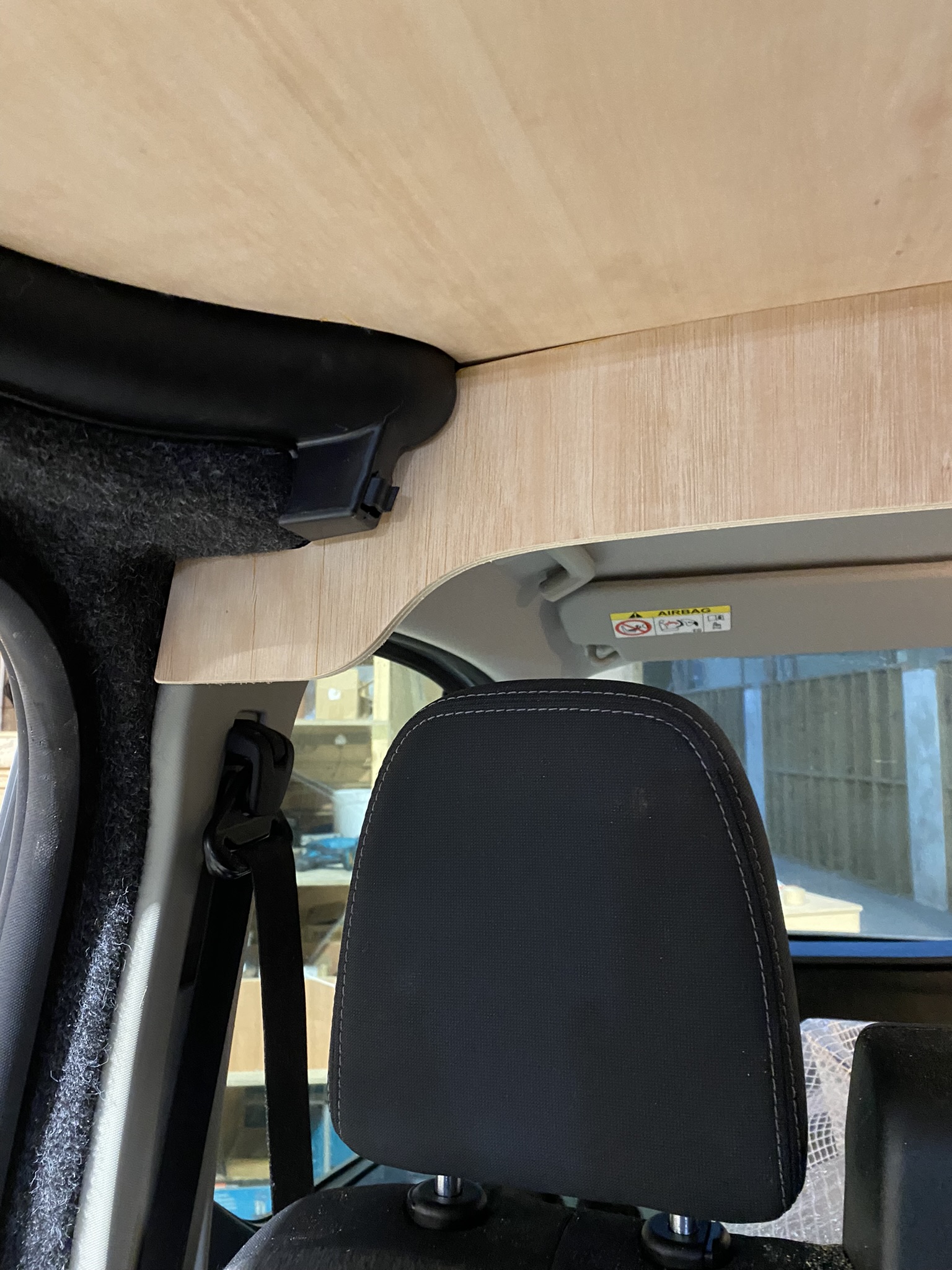

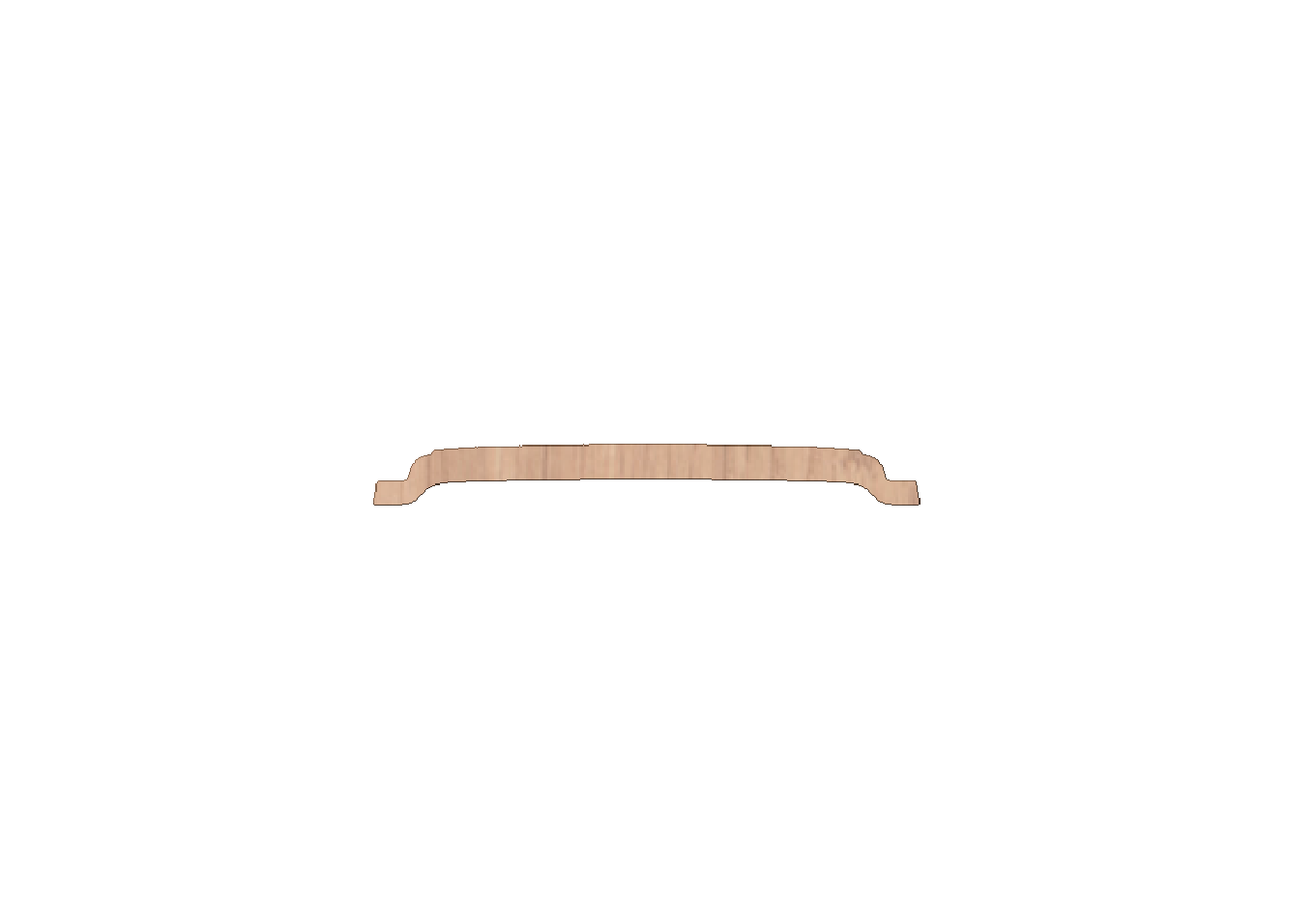

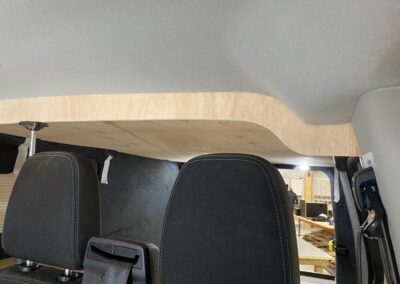

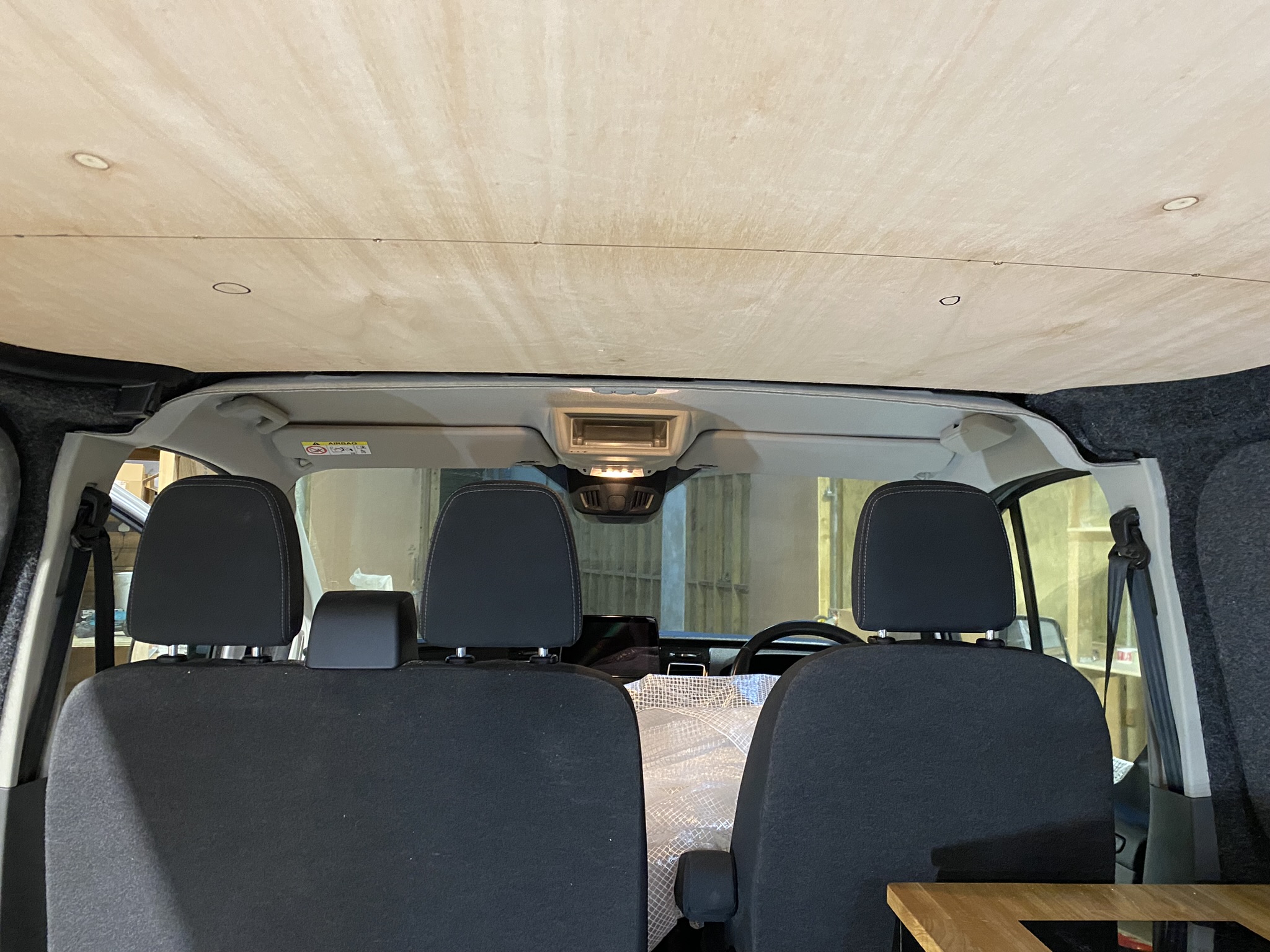

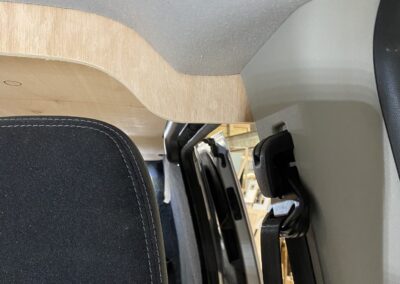

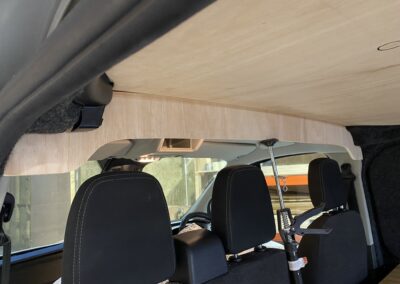

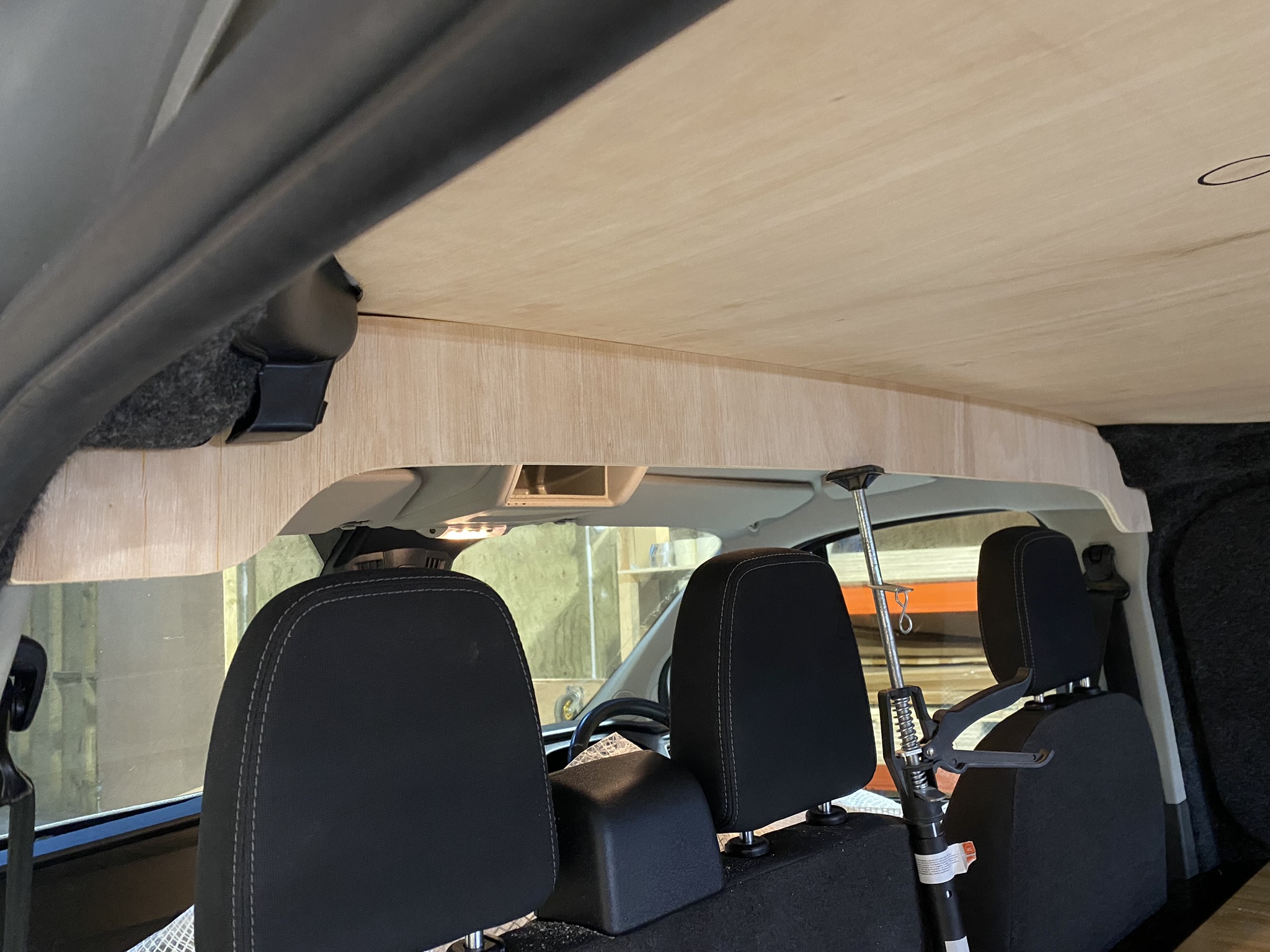

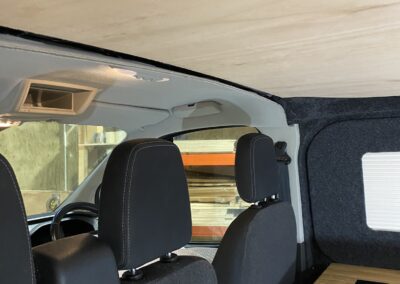

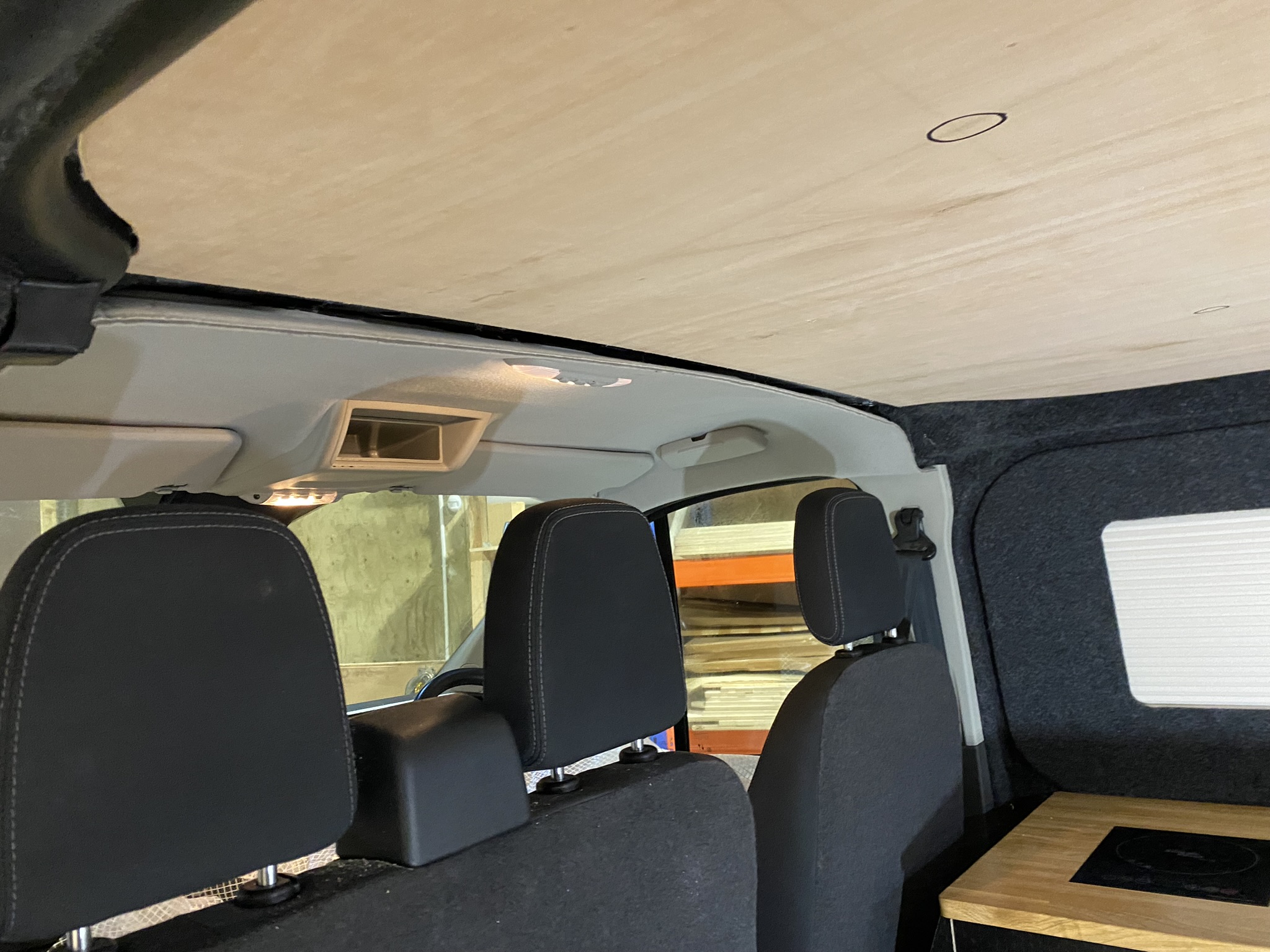

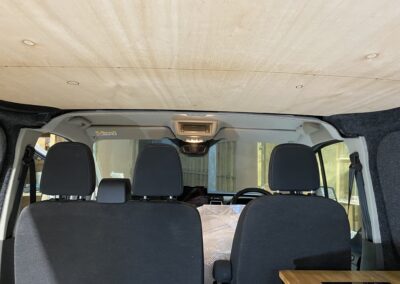

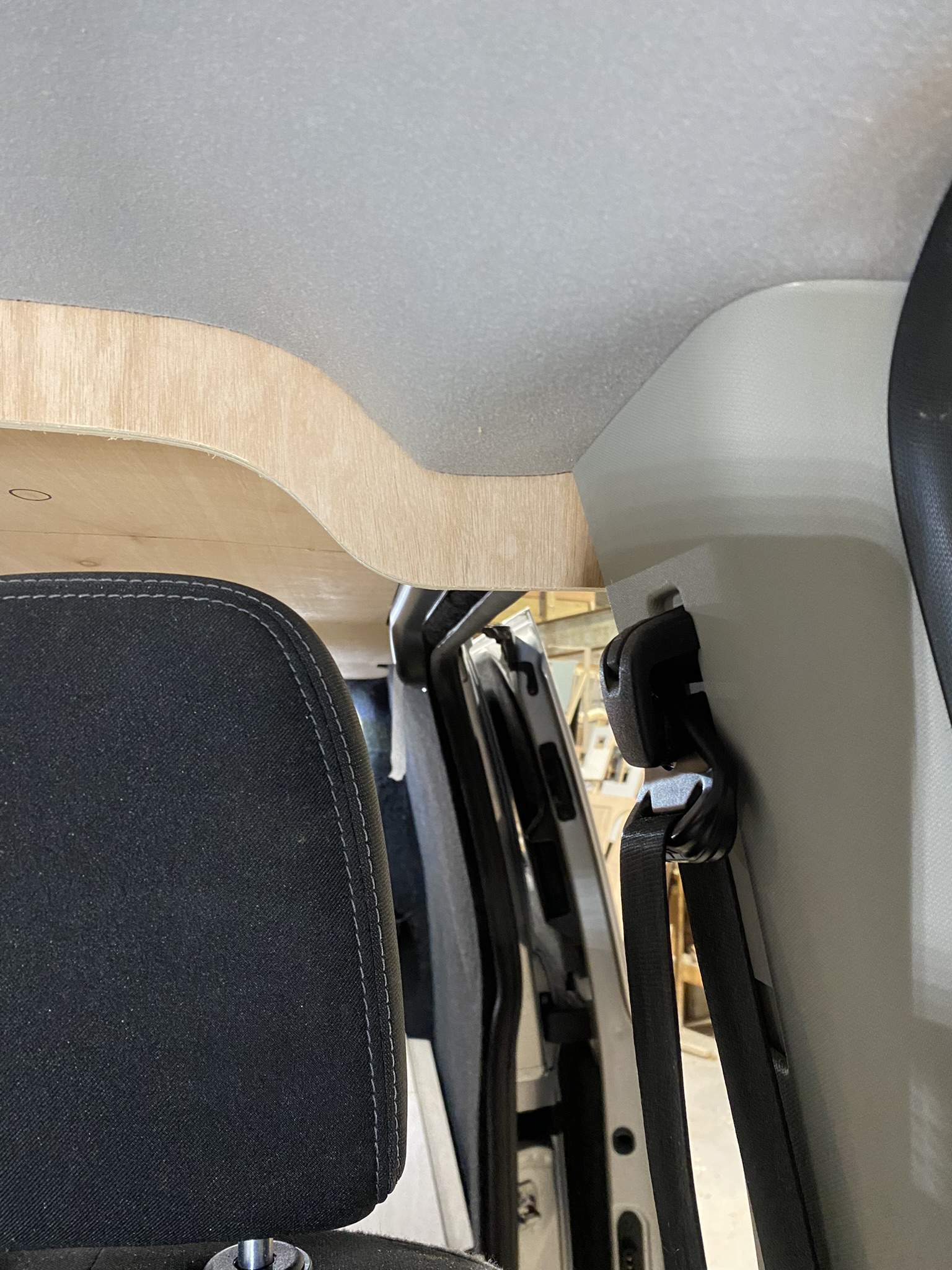

Elevate your camper’s interior with our custom Bulkhead Trim. This pre-scribed piece is designed to fit seamlessly beneath the headliner, concealing the area where the original bulkhead was removed. Designed to be upholstered in your choice of carpet, it provides that seamless, "factory-finished" look that separates a standard van from a professional conversion. Buy in conjunction with your headliner for a reduced price, simply select 'Yes' on Headliner bulkhead trim drop down.
-Professionally CNC cut from 12mm sustainably sourced ply
-Cut to size ready to fit
-Free nationwide delivery!
Our full height ply lining panels are designed to sit outside the standard recess, they therefore are not fixed with clips, this does however offer a professional seamless camper van finish. Although a little trickier to fit, the full height offeres are far better finish. We have listed a few ways professionals ply line below. We recommend two people for all options
- Small black panhead screws-
Firstly, carpet the panels and the areas in which the panels will not cover, then simply screw them to the metal work using small black pan head screws. The screws are barely visible within the carpet and this option allows the removal on the panel if necessary. You may find it helps to pre-drill with a 2.5 metal bit. We recommend two people to carry out the fitting.
- Secret screw-
As before, carpet the panels and the areas in which the panels will not cover. Then make a small V shaped cut in the carpet with a sharp Stanley knife, as we only use 6mm you can then screw the panels with a small headed counter sunk screw, finally butt the carpet over the screw head for a seamless finish
- Carpet drop-
Firstly, screw all uncarpeted ply into position with counter sink screws, then carpet drop the full side of the van starting from the top. Individual doors will still require steps 1 or 2
VW T5/6
-Full height OS with window – Full height NS sliding door with window – Full height rear quarter – Full height barn doors with window – Full height tailgate with window
FTC 2014-2024
-Full height OS with window – Full height NS sliding door with window – Full height rear quarter – Full height barn doors with window – Lower tailgate
VW T7/ FTC 2024-present
Lower OS – Full height NS sliding door with window – Full height rear quarter – Full height barn doors with window or lower tailgate
100 in stock
