Standard camper van Ply-Lining kits
From £195.00
The standard half height ply-lining kits are designed to accommodate the stylish Vanshade pods, please see our full height ply lining kits for a better finish when installing curtains. Rear quarters come full size but can be cut down if installing Vanshade pods in the rear quarters. Standard 6mmm ply headliners and 12mm floors also available. Please see 'specification' tab for more details.
-Professionally CNC cut from 6mm sustainably sourced ply
-Cut to size ready to fit
-Free nationwide delivery!
Additional information
| Hand Drive | Left, Right |
|---|---|
| Wheel Base | Long, Short |
| Roof Type | Pop Top, Standard |
| Trim Colour | Black, Grey, Silver |
| Unit Colour | Baby Blue, Black Gloss, Brushed Metal Dark, Brushed Metal Light, Cherry, Concrete, Cream Gloss, Dark Grey Gloss, Fjord Green, Hardwood Oak, Light Grey Gloss, Light oak, Marble Dark, Marble Light, Orange, Red, Stone, Terracotta, Turquoise Blue, Walnut, White Gloss, Yellow, Zebrano Dark, Zebrano Light |
| Worktop/Table Colour | Baby Blue, Black Sparkle, Solid Oak, White Gloss, Black Gloss, Brushed Metal Light, Brushed Metal Dark, Cherry, Concrete, Cream Gloss, Dark Grey Gloss, Fjord Green, Hardwood Oak, Light Grey Gloss, Light Oak, Marble Dark, Marble Light, Orange, Red, Stone, Terracotta, Turquoise Blue, Walnut, White Sparkle, Yellow, Zebrano Dark, Zebrano Light |
| Tambour Door Colour | Black, Silver |
| Handle Colour | Black, Chrome |
| Kickboards | Custom Size, Fabworx 112 tested, Metal 'N' Threads 3/4 tested, None, Rib Alter 3/4 112 Fixed, Rib Alter 3/4 112 Sliding, Rusty Lee 3/4 non tested, Rusty Lee 3/4 tested, Smart bed 3/4 Evo II tested |
| Under Worktop Unit | Dometic/SMEV FO211FGT Oven/Grill cut-out, Standard Door, Tambour Door |
| Rear Unit Bottom Door | Standard Door, Tambour Door |
| Sink/Grill Cut-out | Dometic Smev 9222 RHS, Dometic Smev 9722 RHS, None |
| Double Seat Panel | No, Yes |
| Single Seat Panel | No, One, Two |
| Assembly or Delivery | Flat Packed Collection, Flat Packed Delivered, Full Assembly (Collection Only) |
Fitting
Our full height ply lining panels are designed to sit outside the standard recess, they therefore are not fixed with clips, this does however offer a professional seamless camper van finish. Although a little trickier to fit, the full height offeres are far better finish. We have listed a few ways professionals ply line below. We recommend two people for all options
- Small black panhead screws-
Firstly, carpet the panels and the areas in which the panels will not cover, then simply screw them to the metal work using small black pan head screws. The screws are barely visible within the carpet and this option allows the removal on the panel if necessary. You may find it helps to pre-drill with a 2.5 metal bit. We recommend two people to carry out the fitting.
- Secret screw-
As before, carpet the panels and the areas in which the panels will not cover. Then make a small V shaped cut in the carpet with a sharp Stanley knife, as we only use 6mm you can then screw the panels with a small headed counter sunk screw, finally butt the carpet over the screw head for a seamless finish
- Carpet drop-
Firstly, screw all uncarpeted ply into position with counter sink screws, then carpet drop the full side of the van starting from the top. Individual doors will still require steps 1 or 2
Specification

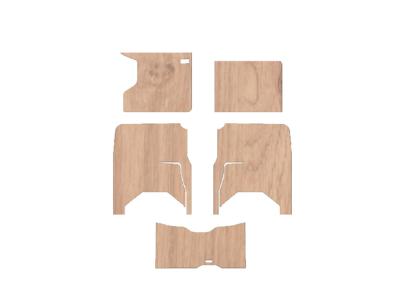

VW T5/6 single slider
Lower OS panel, lower NS sliding door, 2 x full height rear quarters, 2 x seat belt covers, lower barn doors or tailgate

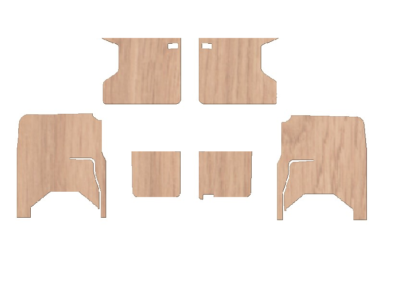

VW T5/6 twin slider
2 x lower sliding doors, 2 x full height rear quarters, 2 x seat belt covers, lower barn doors or tailgate
FTC 2014-2024 single slider
Lower OS panel, lower NS sliding door, 2 x full height rear quarters, lower barn doors or tailgate
FTC 2014-2024 twin slider
2 x lower sliding doors, 2 x full height rear quarters, lower barn doors or tailgate
51 in stock
