VW T5/T6
Design – Mobiframe 112
From £2,295.00
The Kitchen That Works with Your Mobiframe

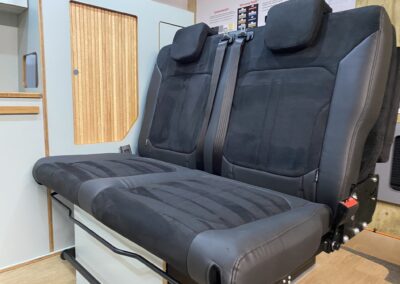

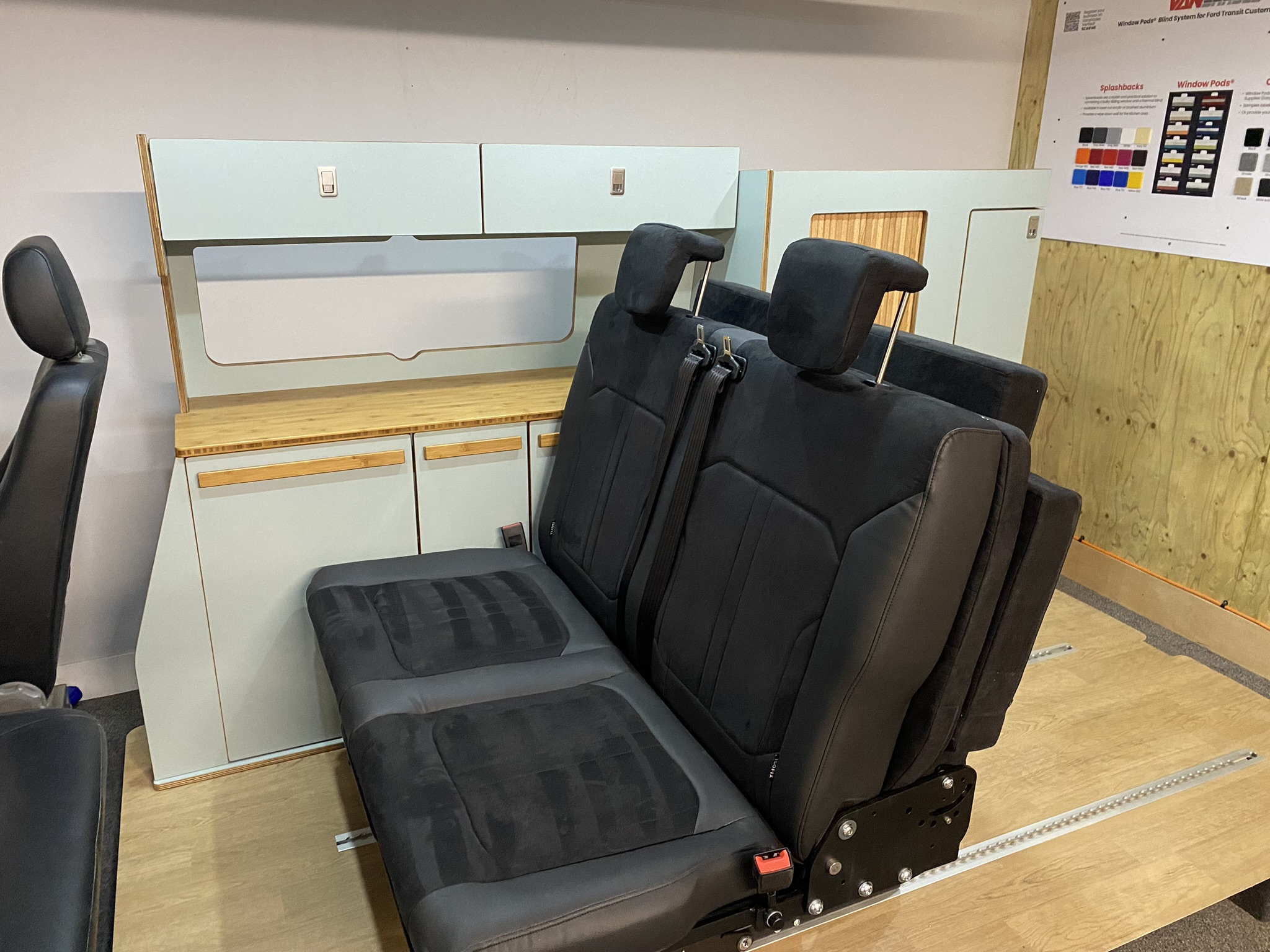

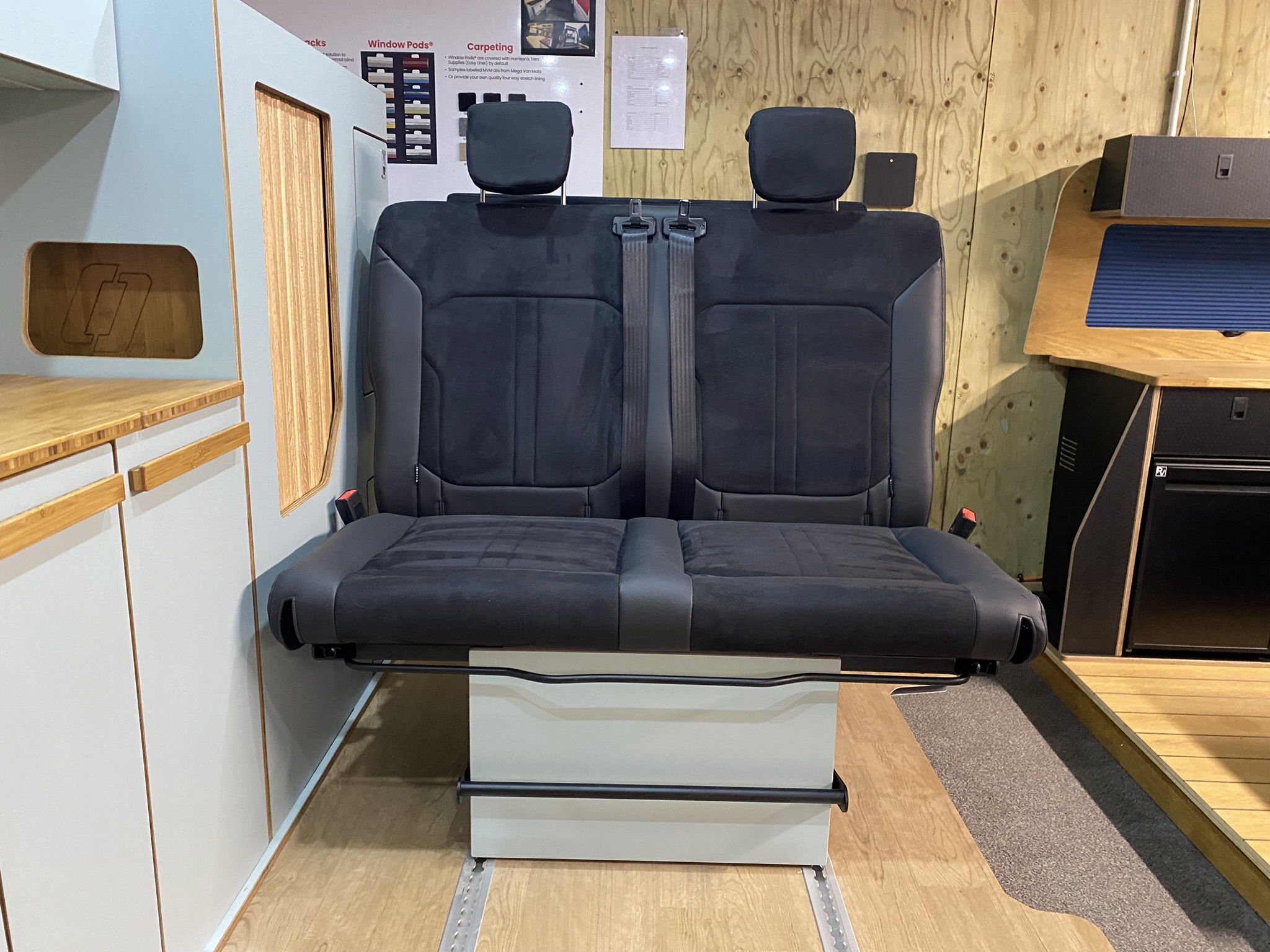

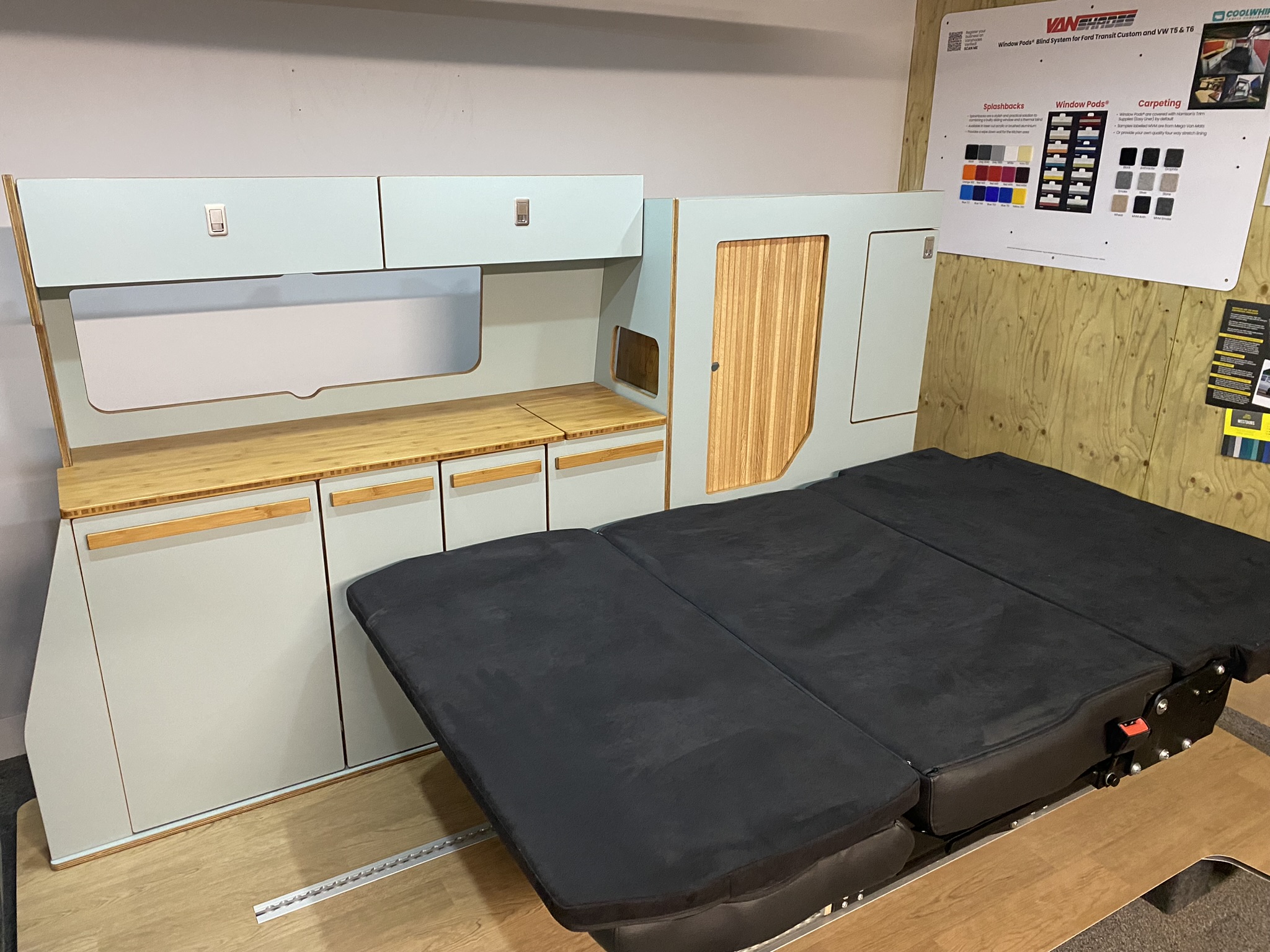

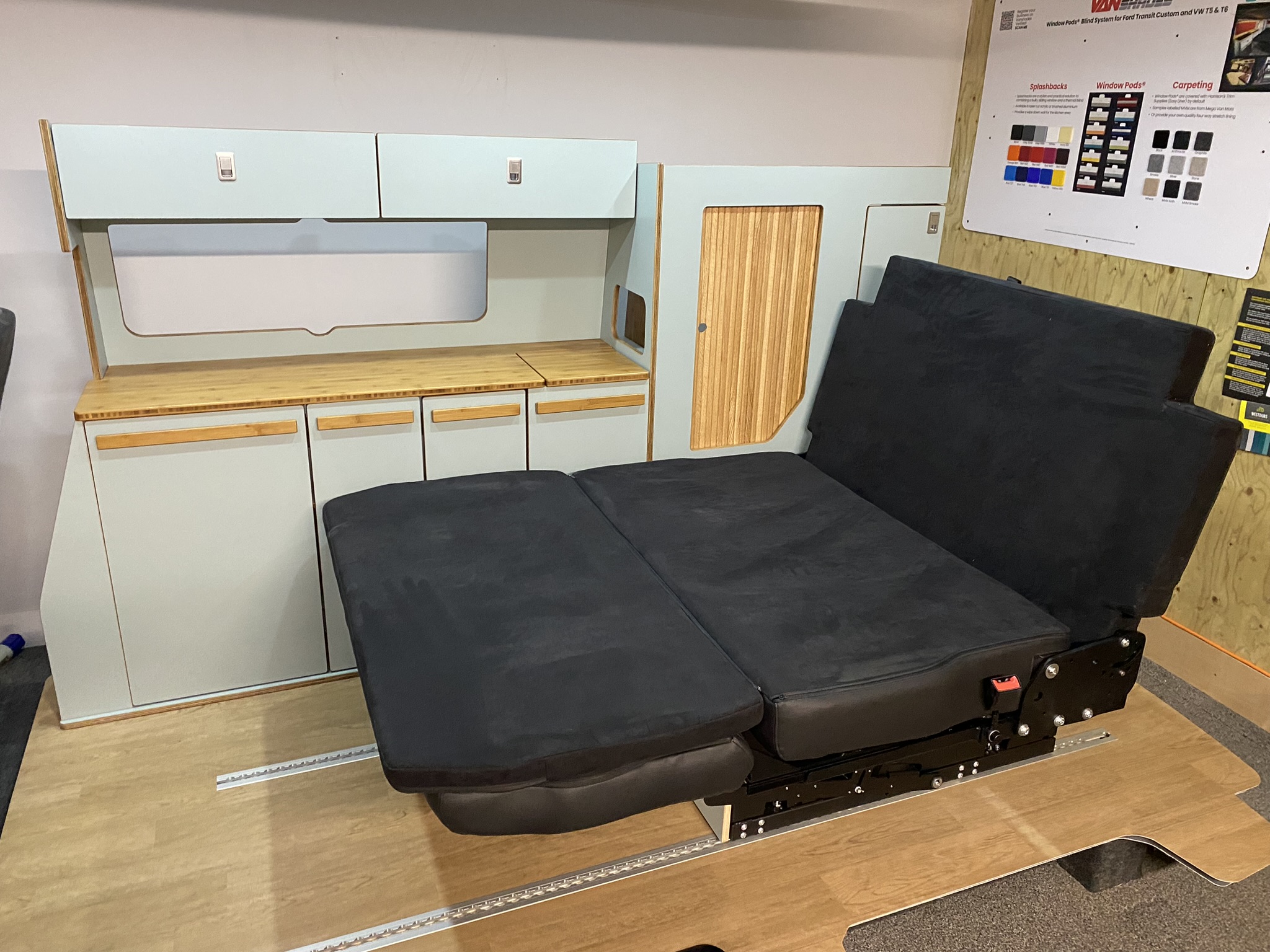

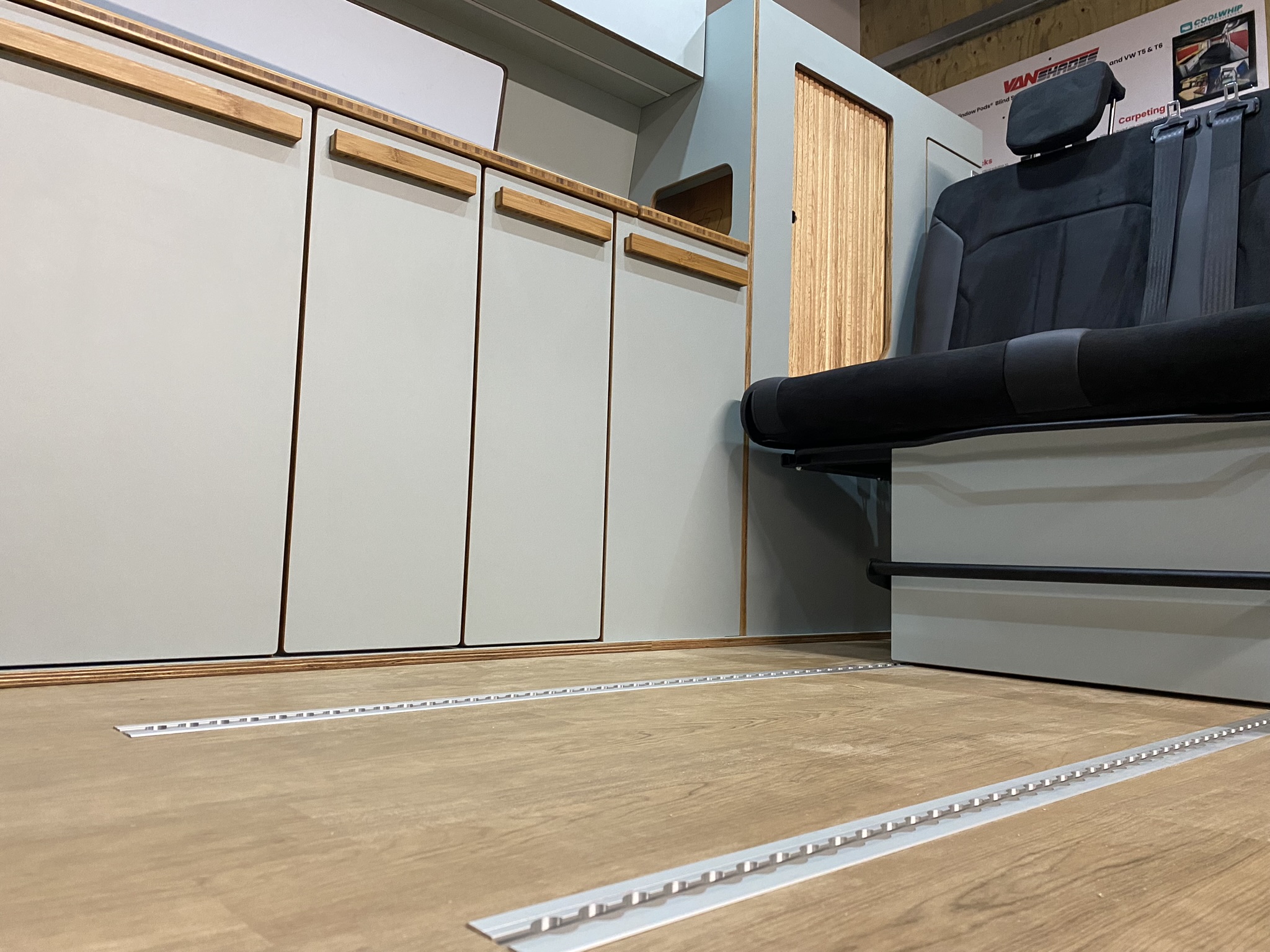

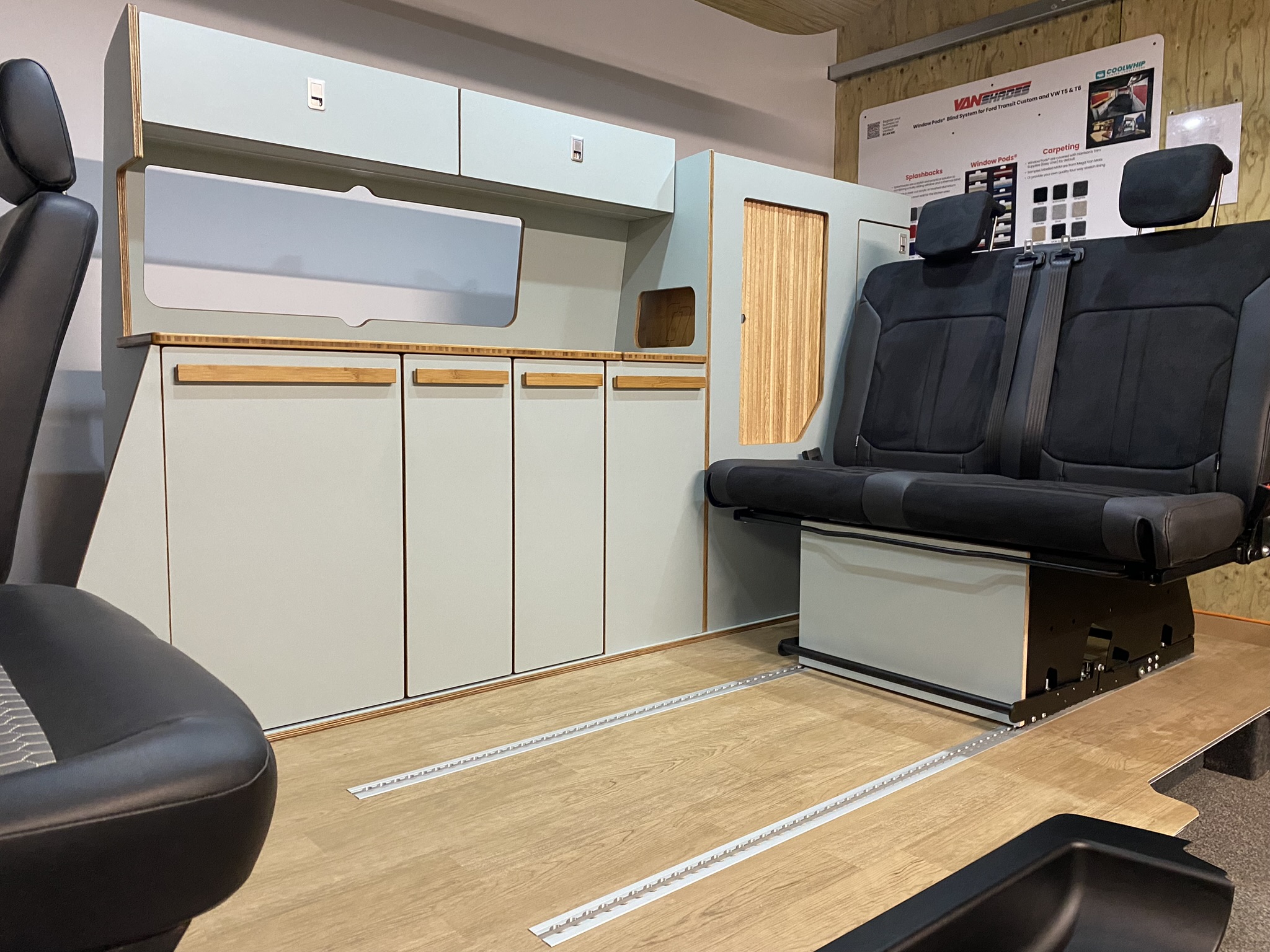

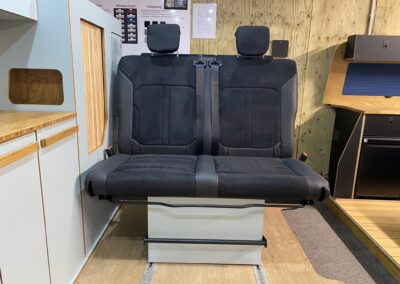

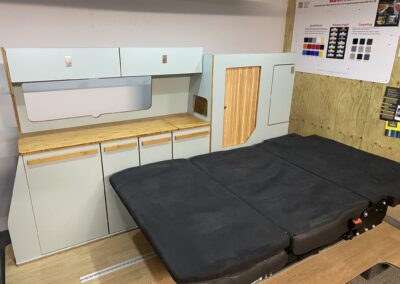

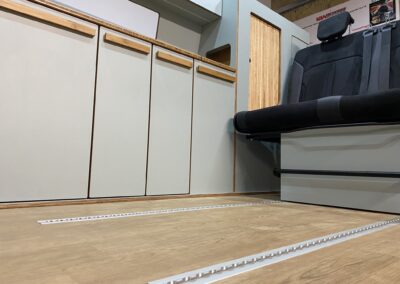

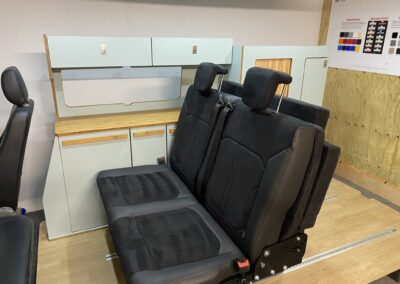

This kitchen is designed to integrate seamlessly with the Mobiframe 112 bench on rails.
-
Optimised Height: Designed specifically for the thicker composite floor. We’ve adjusted the height so you can skip the trimming.
-
Flush Full-Length Profile: The sleek, flush design ensures your seat slides into the furthest forward position without sacrificing legroom.
-

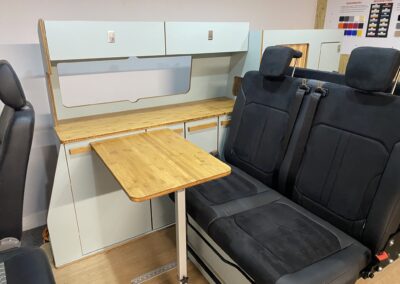

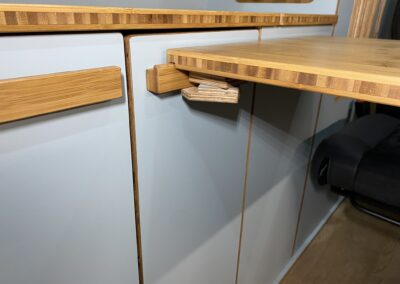

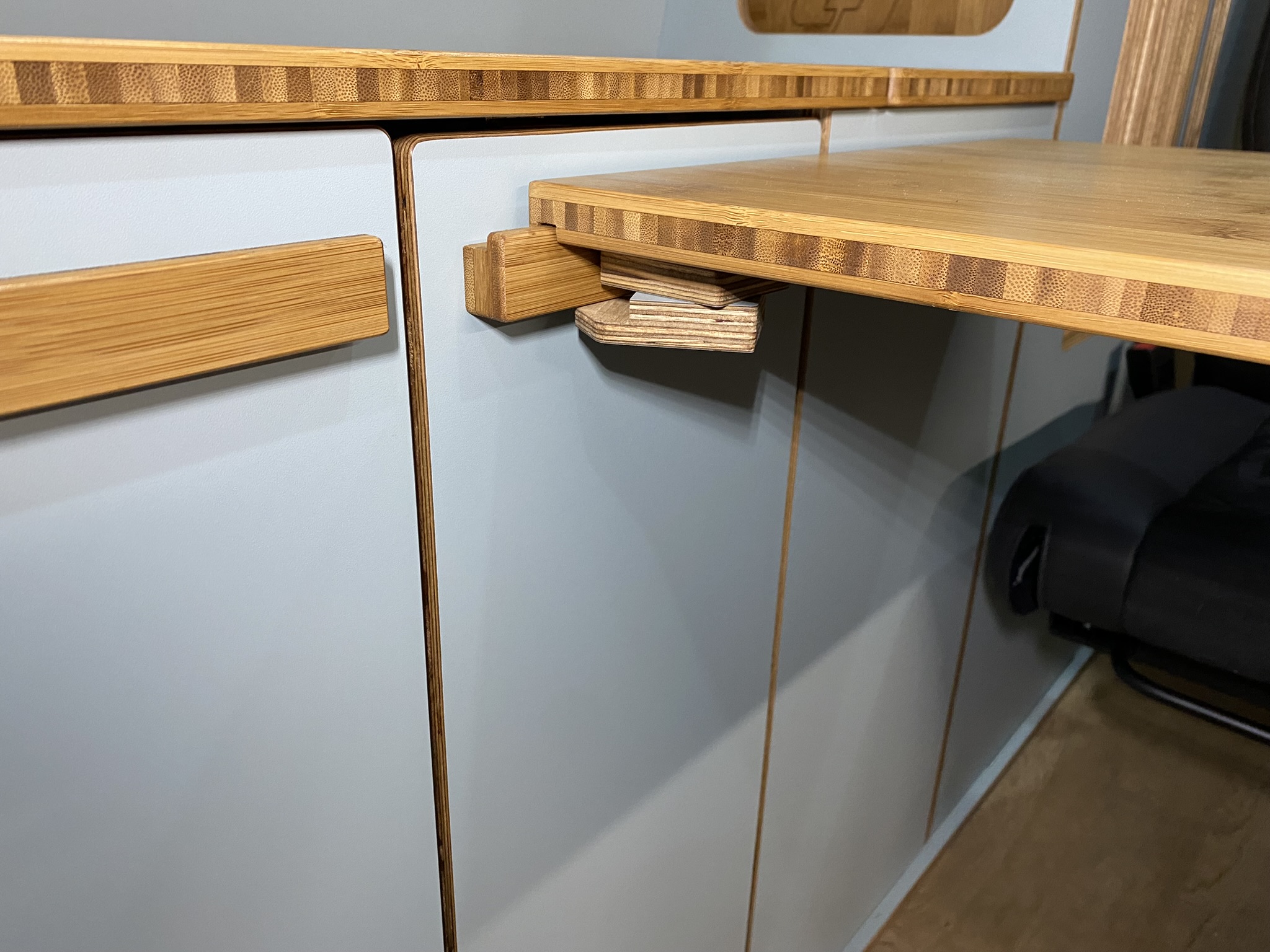

Table Versatility: Featuring our innovative dual-purpose handle and table mount. Slide your dining setup the full length of the kitchen to perfectly align with your seating
-
Install Hardware: Each kit includes our specialized plug-and-screw fitting system, designed for the mobiframe composite floor, also enabling the kit to be easily removable when needed.

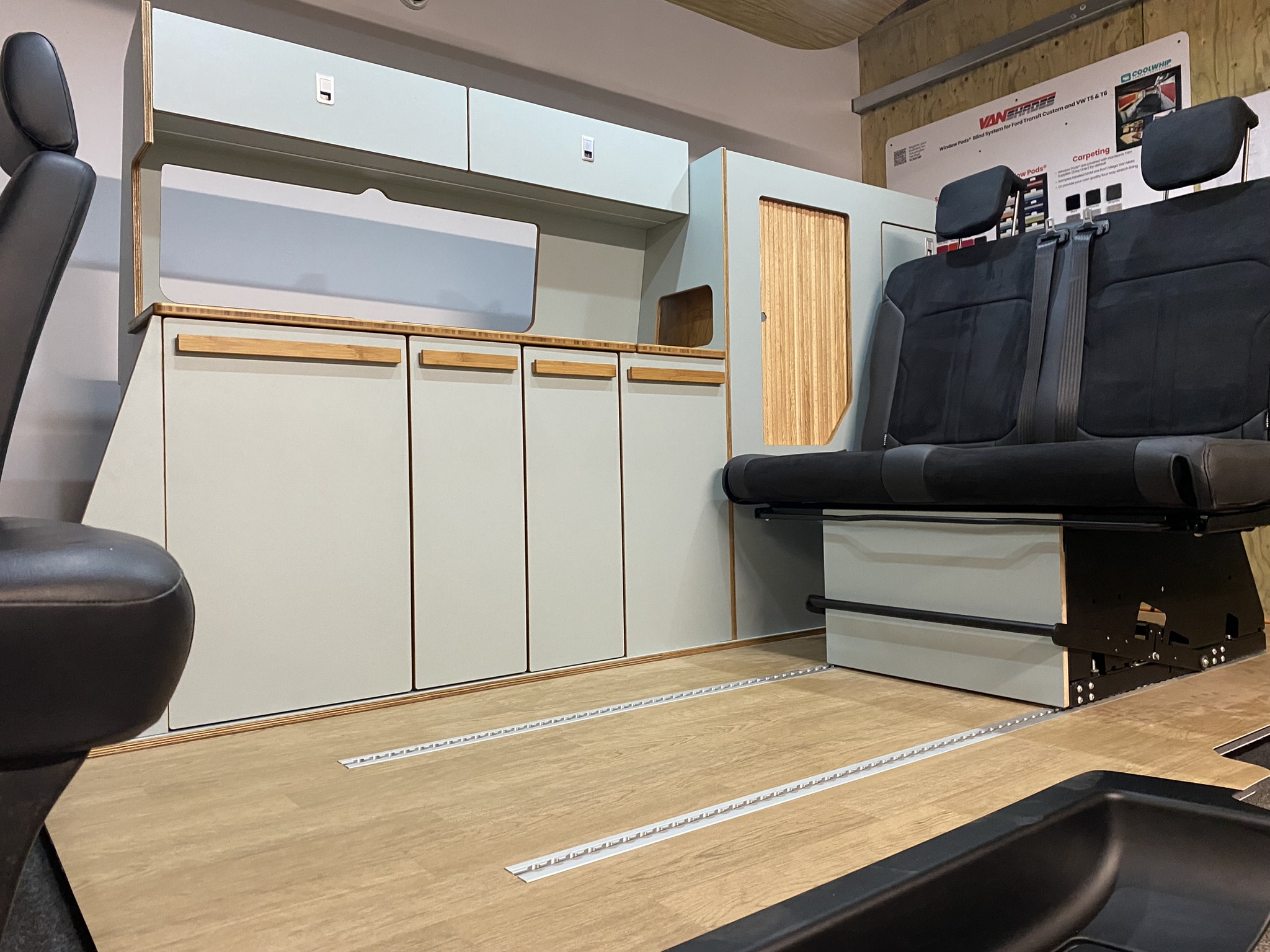

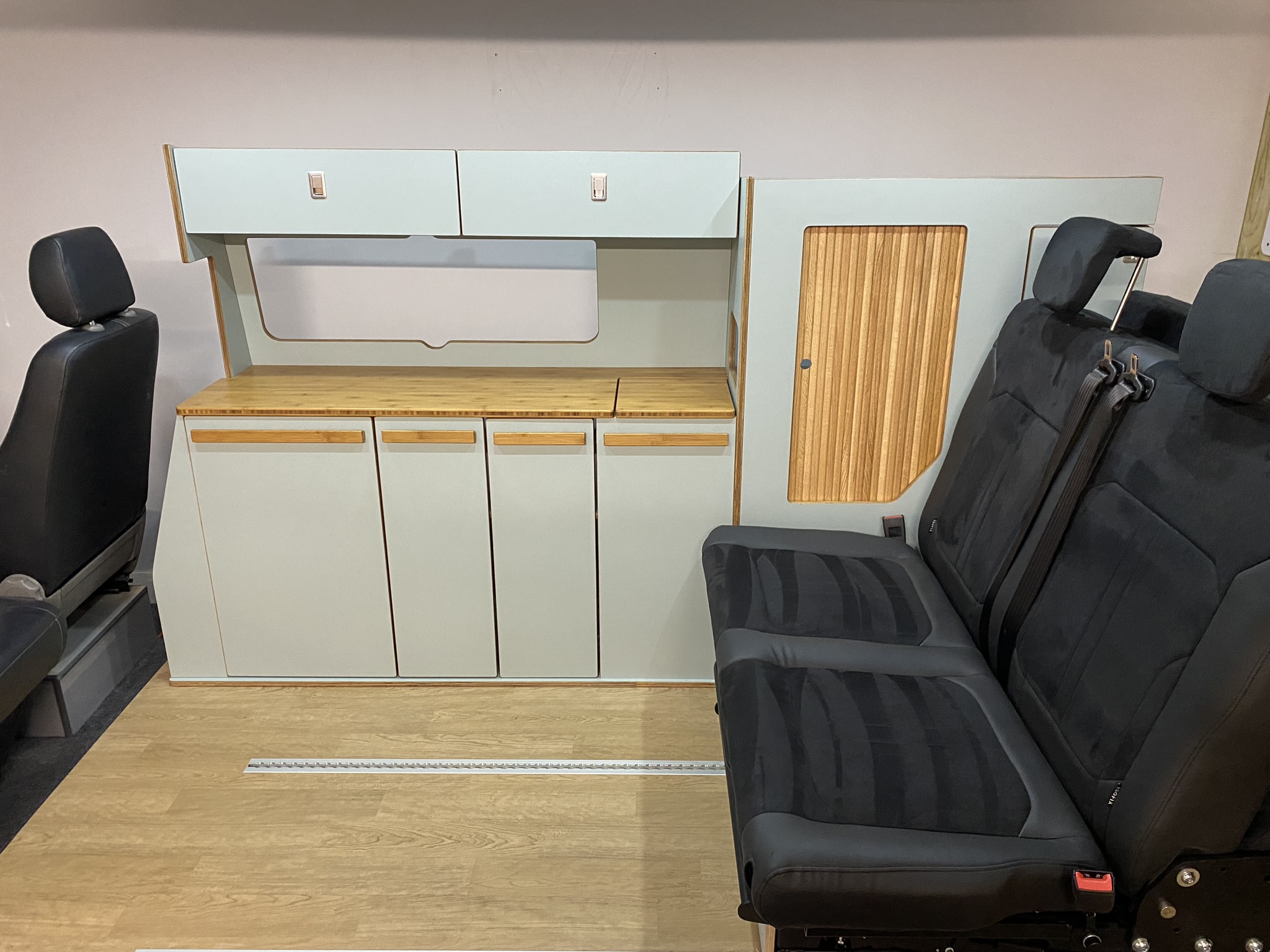

Building a campervan can be a huge project, but our VW T5 T6 Mobiframe furniture kit is here to make it simple. We've done the hard work for you. Every piece is pre-scribed to match your van's exact contours, which means no more tedious measuring or cutting. The kit fits perfectly, saving you countless hours and minimizing mistakes.
Assembly is incredibly easy with our innovative integrated floor system. You simply click the pieces into the floor base, wire your appliances, and then slide the complete unit into place.

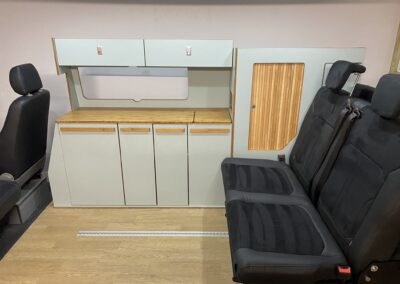

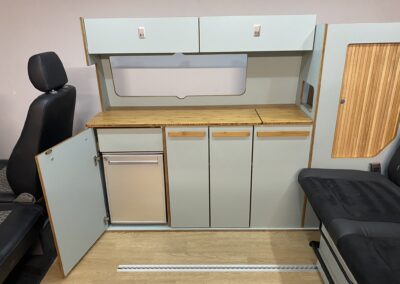

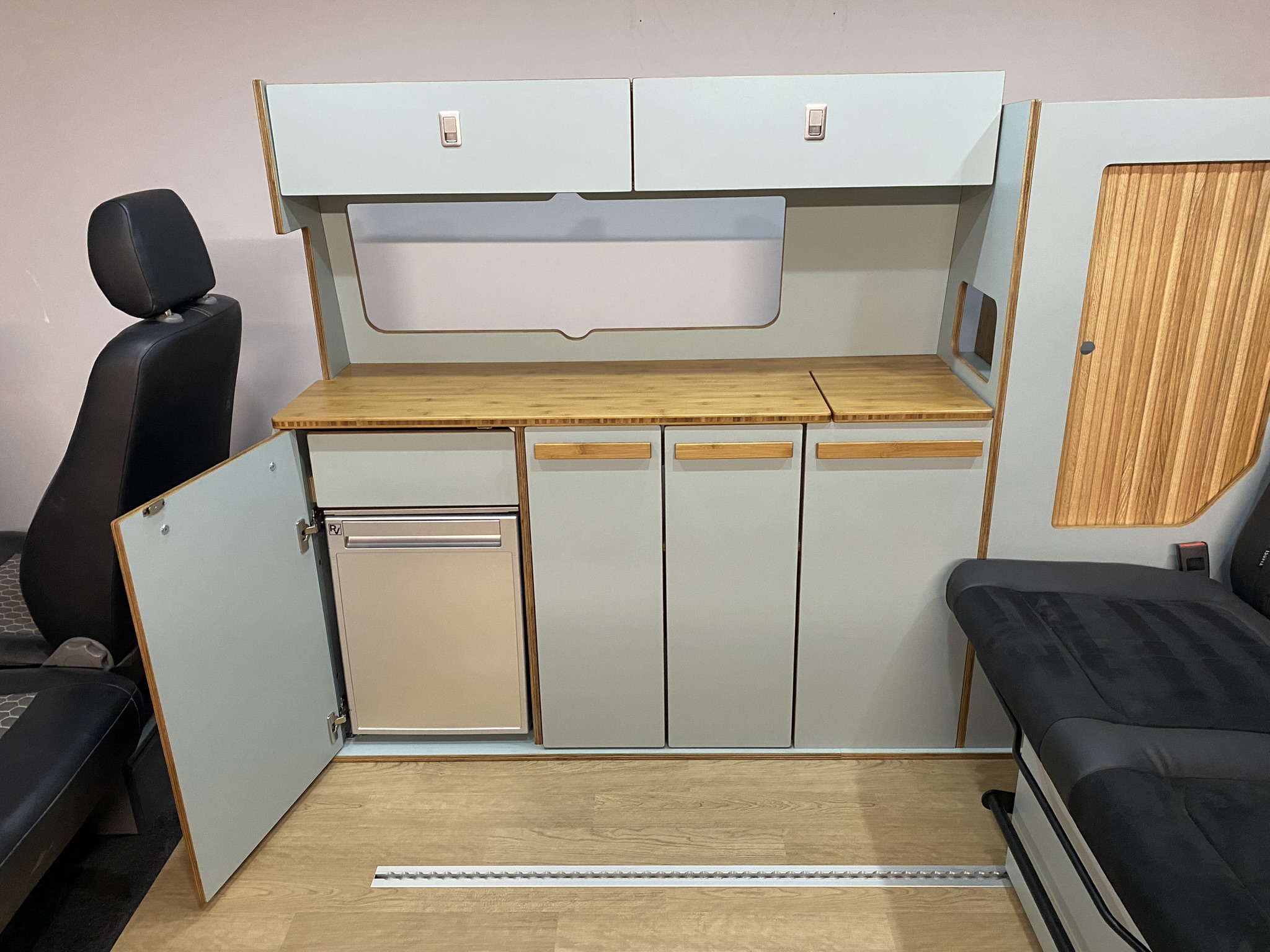

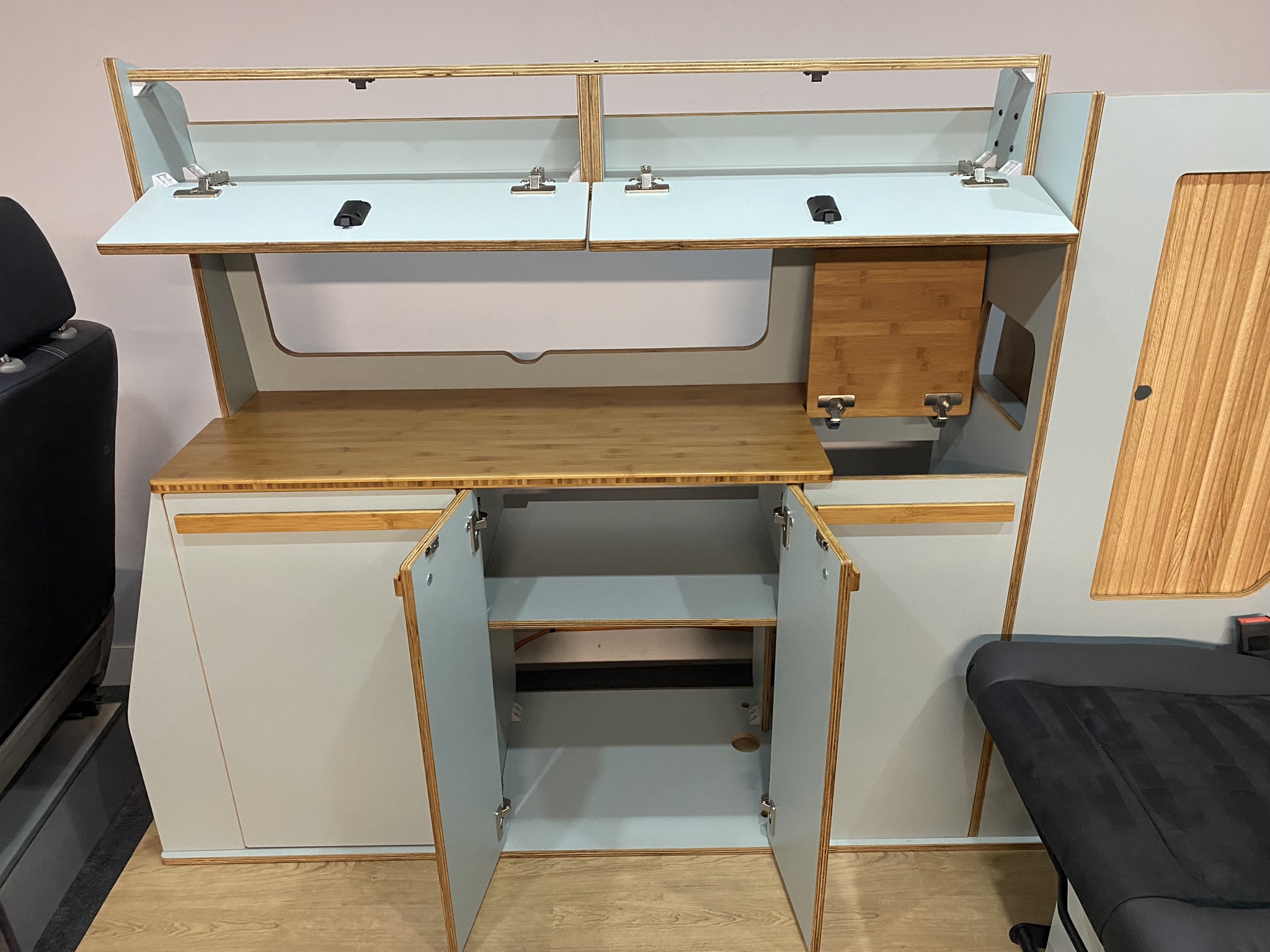

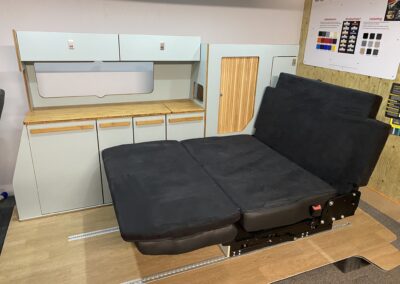

The standard design offers maximum storage accommodating the Mobiframe 112 seat bed on rails. This kit includes full-length overhead lockers for all your storage needs with solid bamboo worktop and table as standard that adds a touch of class to your new kitchen. Please see features tab above to see all that's included with this kit.
Crafted with Quality Coolwhip is proud to be a leading UK supplier of premium campervan furniture. Our reputation for quality is unmatched, and our 5-star Trustpilot rating is a testament to the trust our customers place in us.
Additional information
| Hand Drive | Left, Right |
|---|---|
| Wheel Base | Long, Short |
| Roof Type | Pop Top, Standard |
| Trim Colour | Black, Grey, Silver |
| Unit Colour | Baby Blue, Black Gloss, Brushed Metal Dark, Brushed Metal Light, Cherry, Concrete, Cream Gloss, Dark Grey Gloss, Fjord Green, Hardwood Oak, Light Grey Gloss, Light oak, Marble Dark, Marble Light, Orange, Red, Stone, Terracotta, Turquoise Blue, Walnut, White Gloss, Yellow, Zebrano Dark, Zebrano Light |
| Worktop/Table Colour | Baby Blue, Black Sparkle, Solid Oak, White Gloss, Black Gloss, Brushed Metal Light, Brushed Metal Dark, Cherry, Concrete, Cream Gloss, Dark Grey Gloss, Fjord Green, Hardwood Oak, Light Grey Gloss, Light Oak, Marble Dark, Marble Light, Orange, Red, Stone, Terracotta, Turquoise Blue, Walnut, White Sparkle, Yellow, Zebrano Dark, Zebrano Light |
| Tambour Door Colour | Black, Silver |
| Handle Colour | Black, Chrome |
| Kickboards | Custom Size, Fabworx 112 tested, Metal 'N' Threads 3/4 tested, None, Rib Alter 3/4 112 Fixed, Rib Alter 3/4 112 Sliding, Rusty Lee 3/4 non tested, Rusty Lee 3/4 tested, Smart bed 3/4 Evo II tested |
| Under Worktop Unit | Dometic/SMEV FO211FGT Oven/Grill cut-out, Standard Door, Tambour Door |
| Rear Unit Bottom Door | Standard Door, Tambour Door |
| Sink/Grill Cut-out | Dometic Smev 9222 RHS, Dometic Smev 9722 RHS, None |
| Double Seat Panel | No, Yes |
| Single Seat Panel | No, One, Two |
| Assembly or Delivery | Flat Packed Collection, Flat Packed Delivered, Full Assembly (Collection Only) |
Features
- High pressure laminated birch

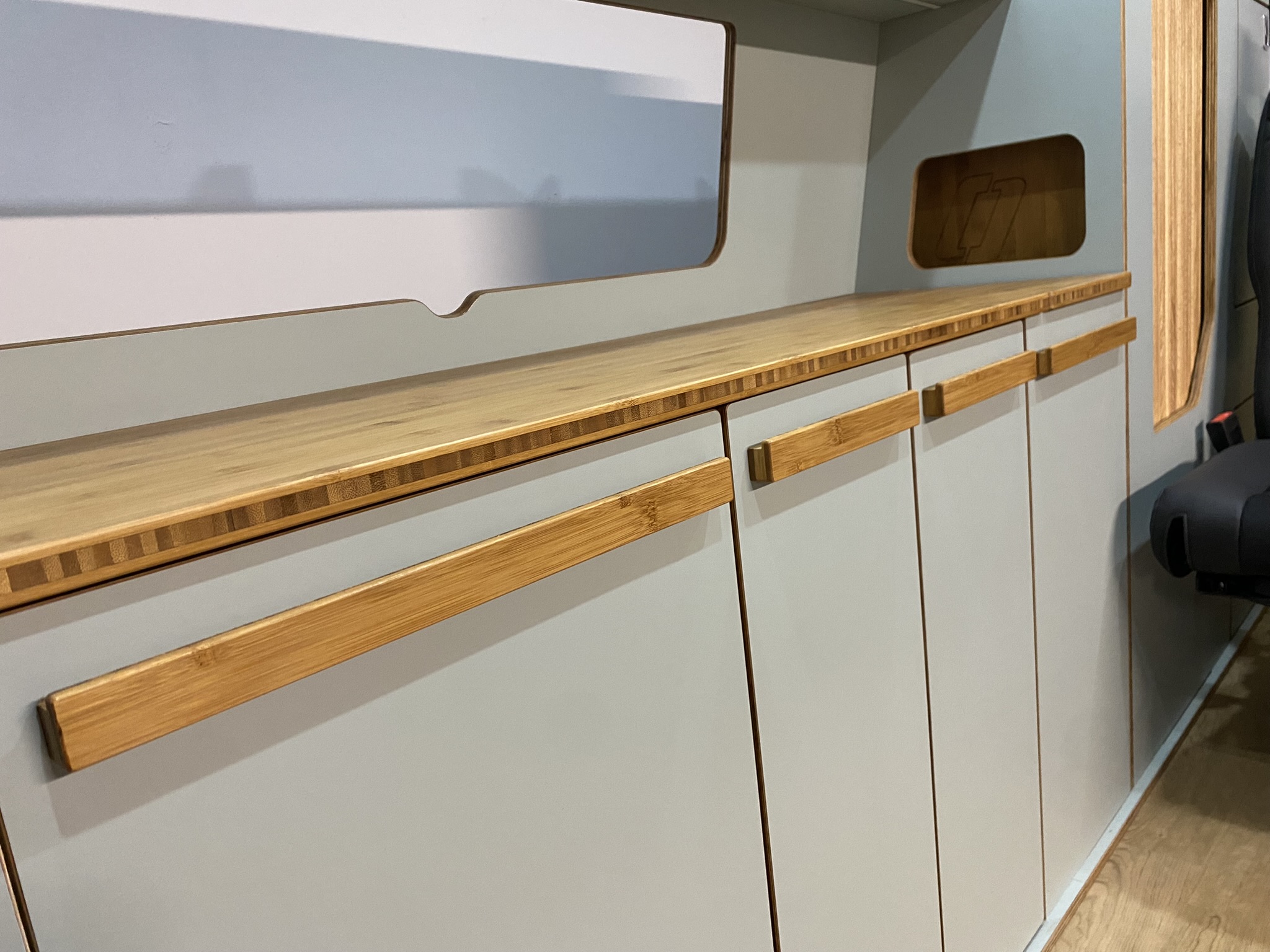

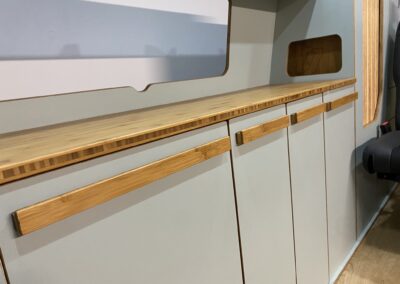

- Bamboo worktop

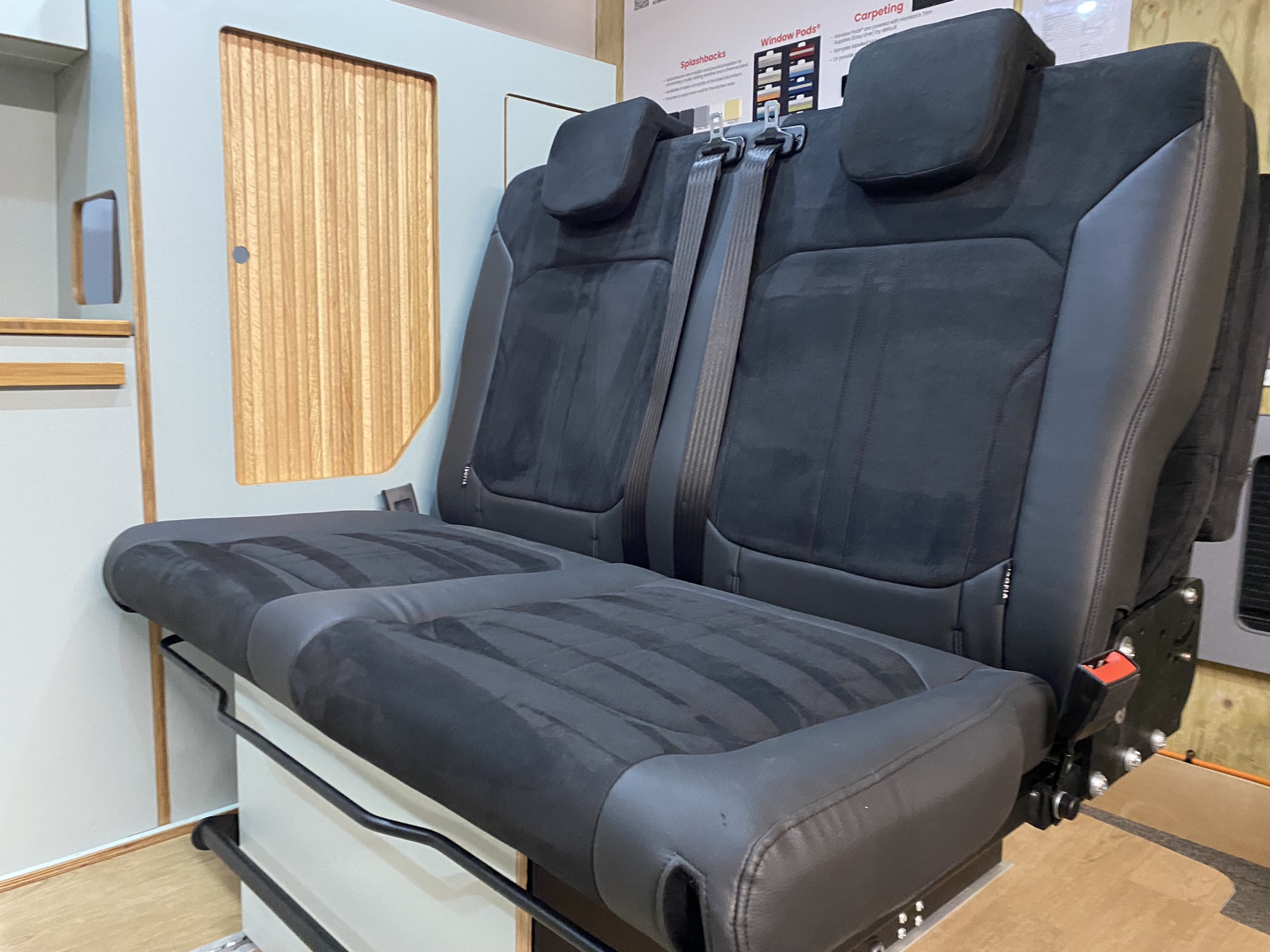

- Real oak tambour door
- Flush handles
- Integrated floor system for simple installation

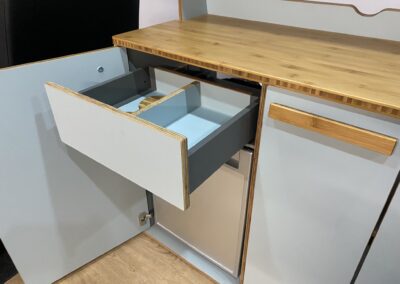

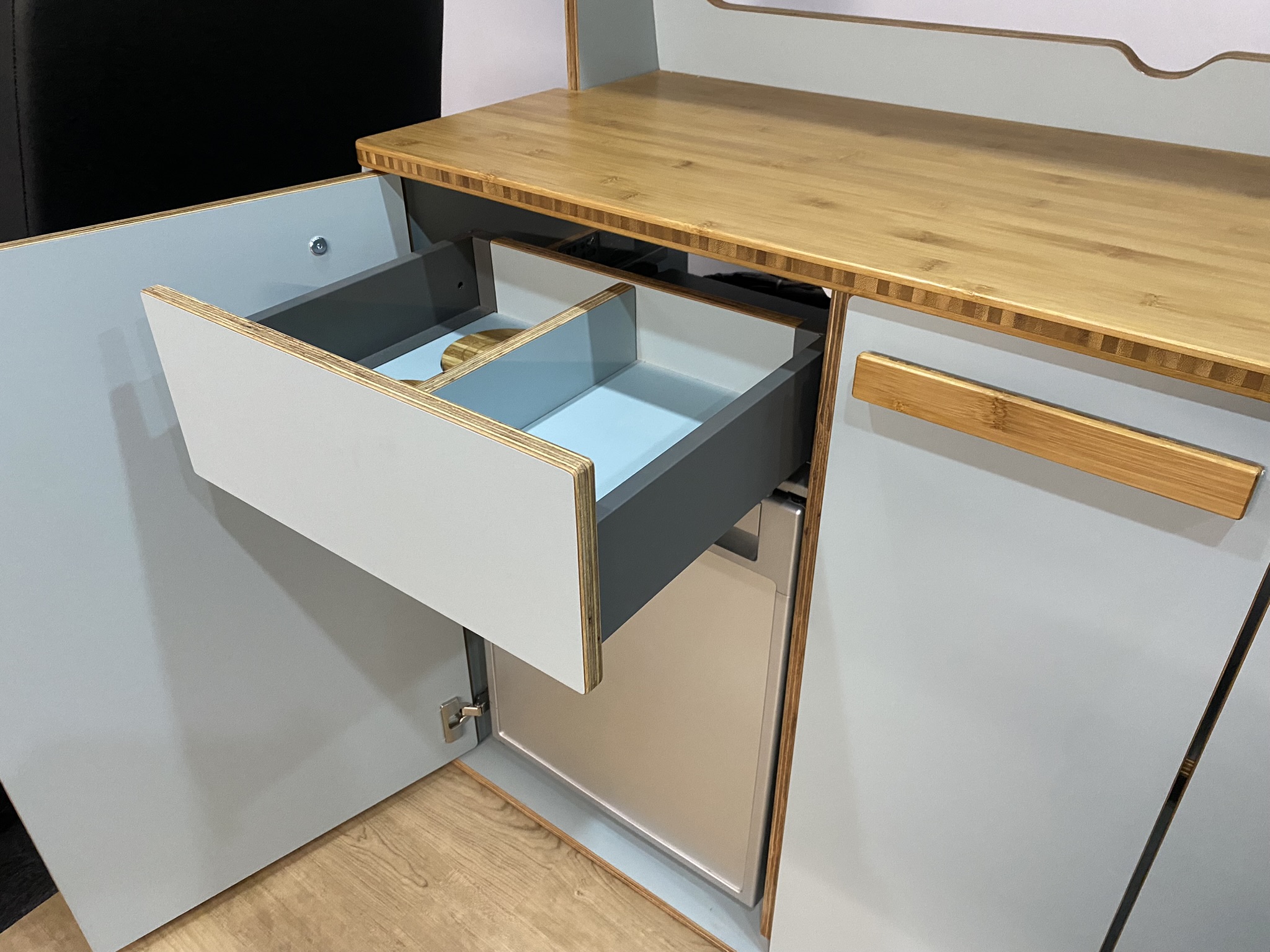

- Soft close drawer

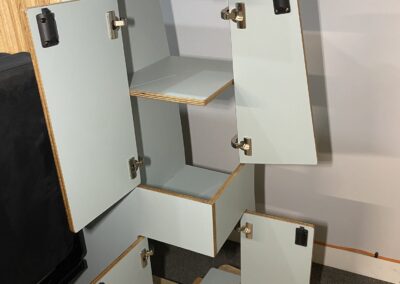

- Soft close door hinges

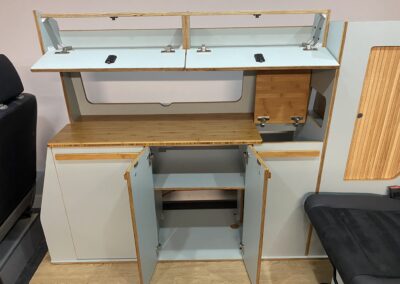

- Overhead LED top locker
- Full size window surround splashback
- Full LED shelving system throughout
- Front and rear kickboards for Mobiframe bed

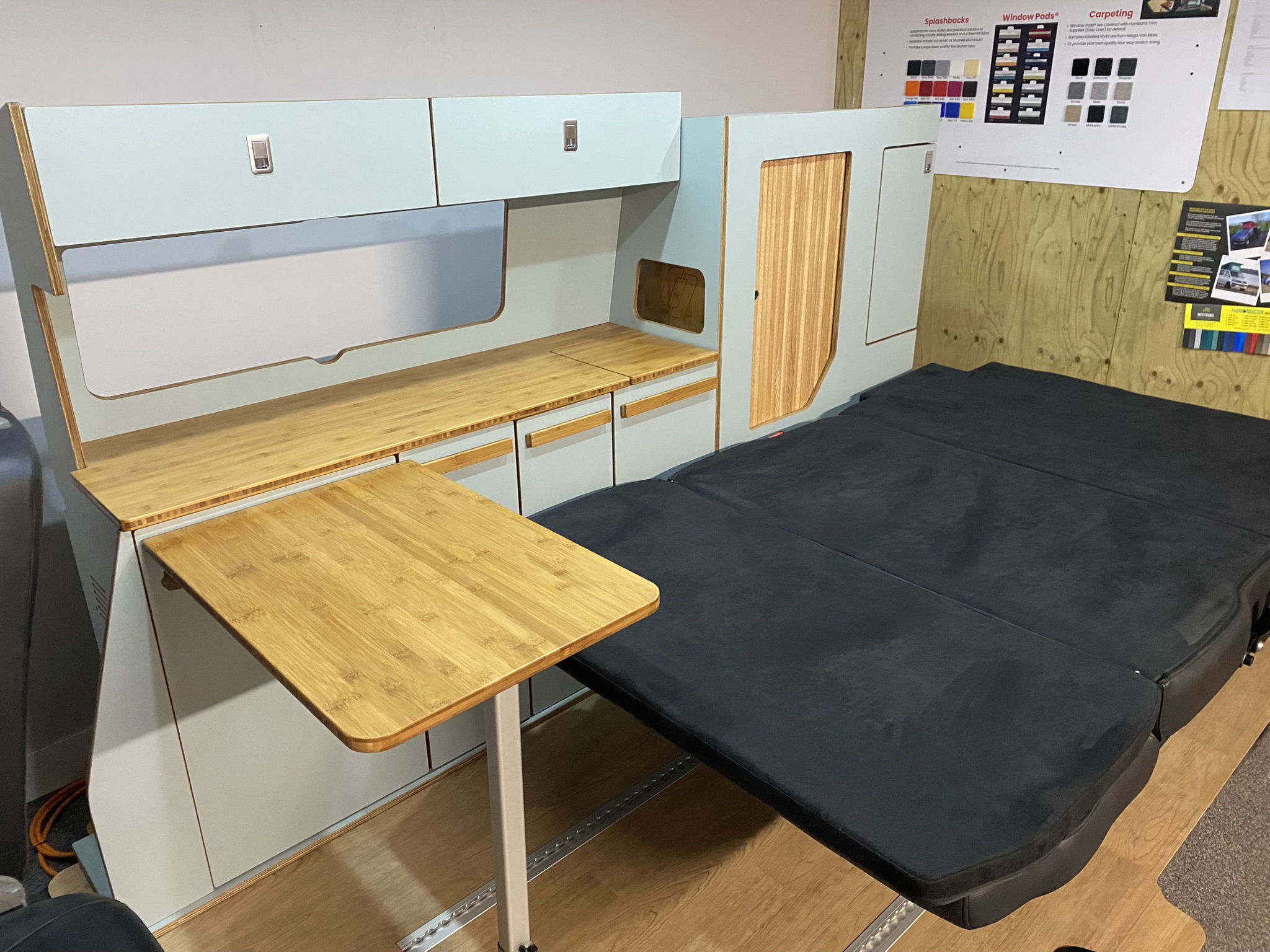

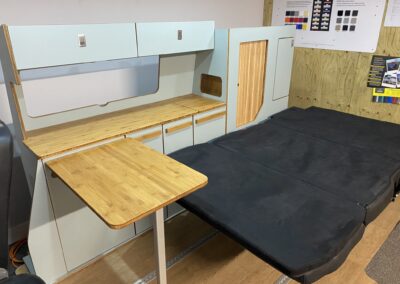

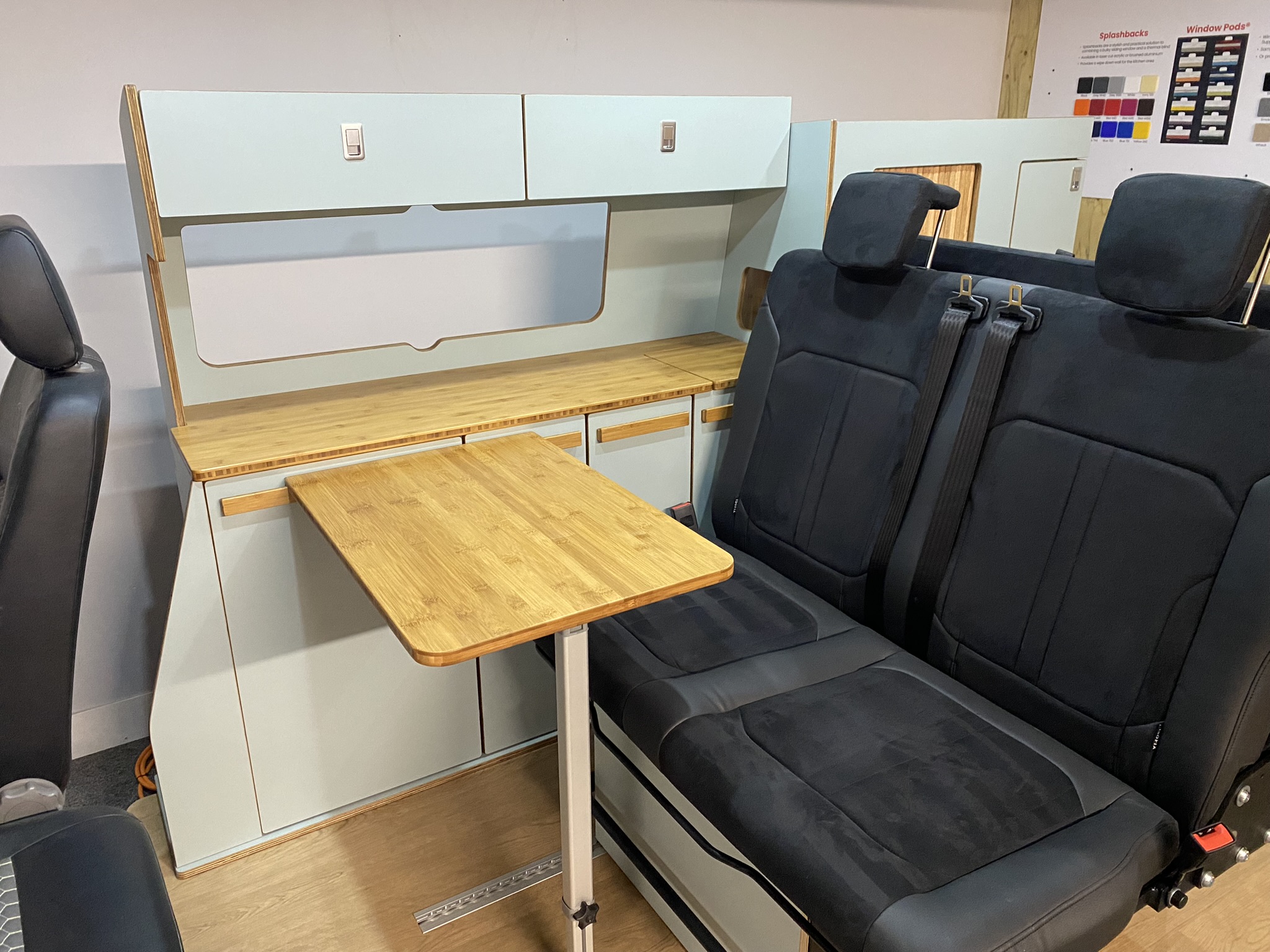

- Bamboo table with folding leg & rail
- Table storage system
- LED cubby hole
- Worktop storage flap
- Grill/sink cut outs
- Coasters
- Barn door table rail
- Easy to follow picture instructions
Specification
SWB
Overall length: 2180mm | Height 1340mm
LWB
Overall length 2580mm | Height 1340mm
Work top
Height: 745mm
Fridge Aperture
Width: 390mm | Height 536mm | depth: 400mm
Aperture will accommodate most popular 35 – 40L campervan 12v fridges, however the fridge door can’t protrude past the fridge width, we recommend our Revace 35L slimline fridge
Ply-Lining
Must have Two-piece ply-ling on O/S with full height rear quarter (see shop)
Worktop appliances
Gas twin burner and sink – Dometic 9722 RHS (surface mounted fit)
Sink – Can LA1400 320 x 260 (undermount fit) Includes LP1800 waste

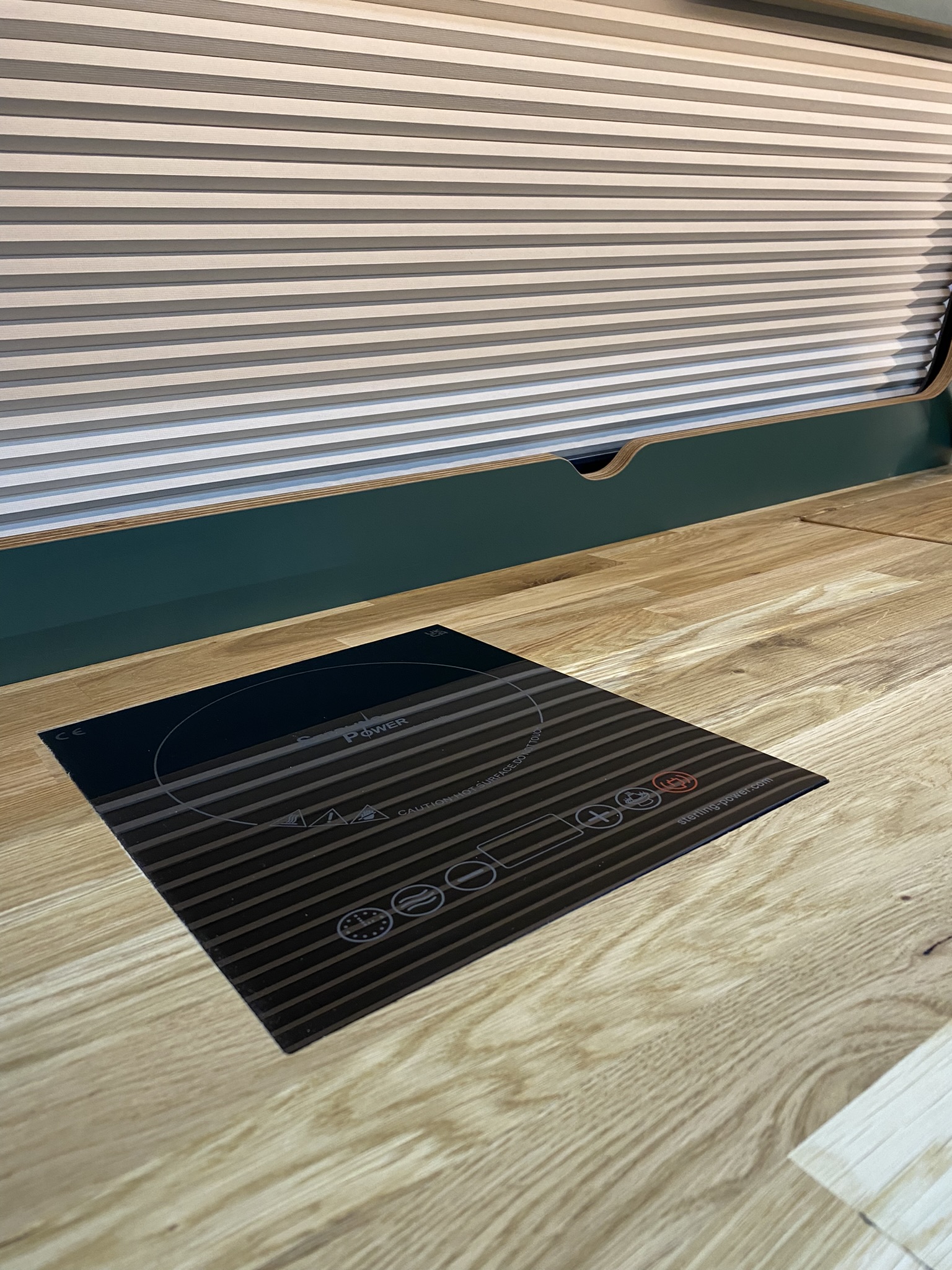

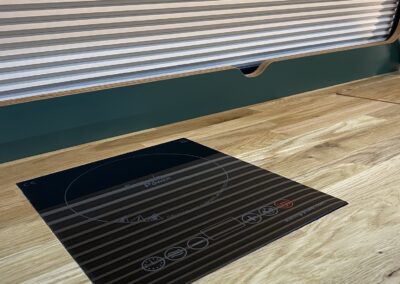

Single induction – Sterling power IH2L 1000W
Twin induction – Sterling power IHFB 2800W
Please Note
- The product picture shown on this listing differs from this kitchen
- SWB includes 2 x doors in top locker
- LWB includes 3 x doors in top locker and an extra 400mm door between the fridge pod and left door.
- and We constantly strive to improve our products, therefore pictures may differ slightly from current design
Colour
Colours
Cream – F2296 Sno white
Cappuccino – F7929 Oyster grey
Fjord green – F7879 Dusty Jade
Deep blue – F7846 Grotto
Forrest green – F8237 FIR
Light grey – F7927 Folkestone
Dark grey – F7928 Mouse
Black – F2253 Diamond Black
To request laminate colour sample, please see link below. Please note we offer the solid colour range only for the main unit colour. Other ranges available for worktop price POA
https://www.formica.com/en-gb/products/laminate/options#sort=relevancy&f:@swatchstyle=[Solid%20Colours]
