• Real crown cut oak veneered finish
• Join hidden in v grove
• 2-piece SWB floors
• 3-Piece LWB (Vivaro MK2 and VW T7/ New 2024 Ford Transit Custom also SWB 3-piece)
• 2 – piece headliners with 6mm ply fitting strips supplied
• CNC cut to size
• Sustainable plywood
• Free delivery

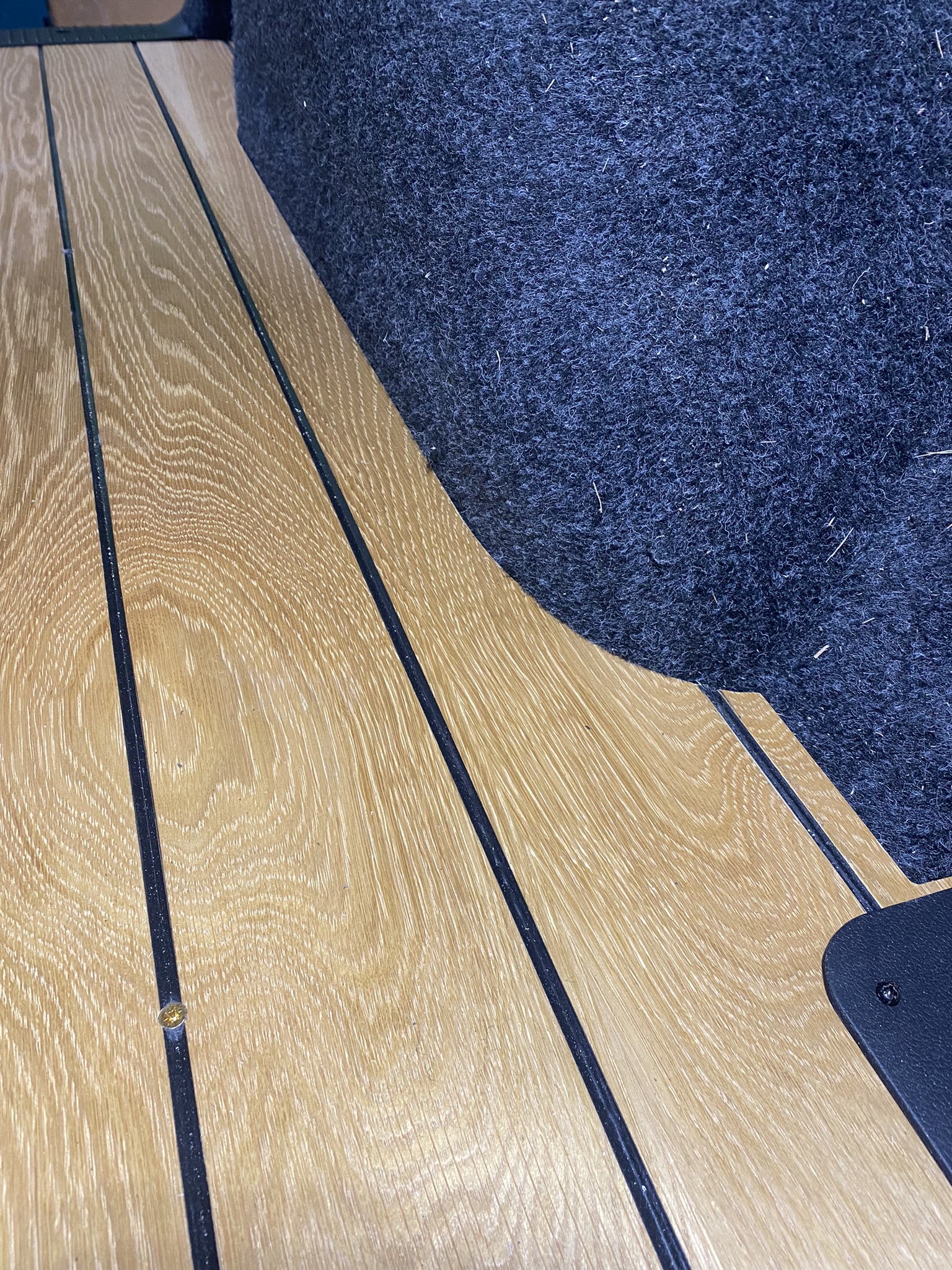

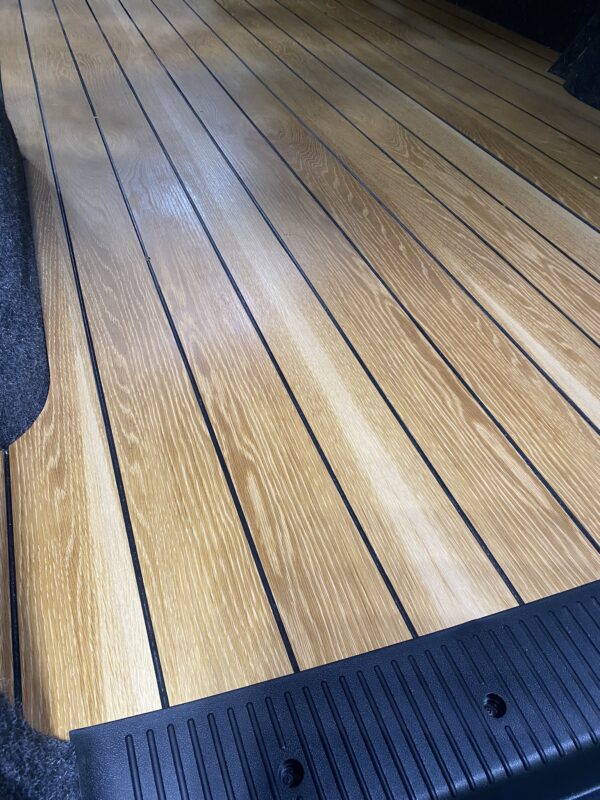

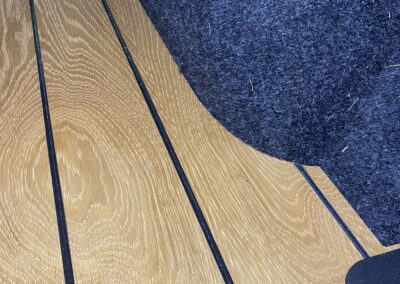

Floors

The oak floor must be bonded to prevent the wood warping, although easy in theory, achieving a perfect finish can require a certain level of attention to detail. Firstly, dry fit your floor, they are designed to fit perfectly snug after ply lining and carpet, however if any trimming is required this is the time. Secondly, we recommend filling the van rib gaps with 9mm ply for a better base support, however this is not imperative. When fitting apply an even amount of adhesive onto the ribs, we recommend soudal fix all turbo adhesive. Once the floor has been laid, apply even pressure throughout so the floor is in contact with all the ribs. Finally, the floor must be weighed down with significant weight, ensuring all the floor is in contact with the ribs and bond, this is most important over the join. An alternative to weight can be using acrow props, just ensure you are applying pressure evenly and inline with the van ceiling ribs to avoid damaging any headliners

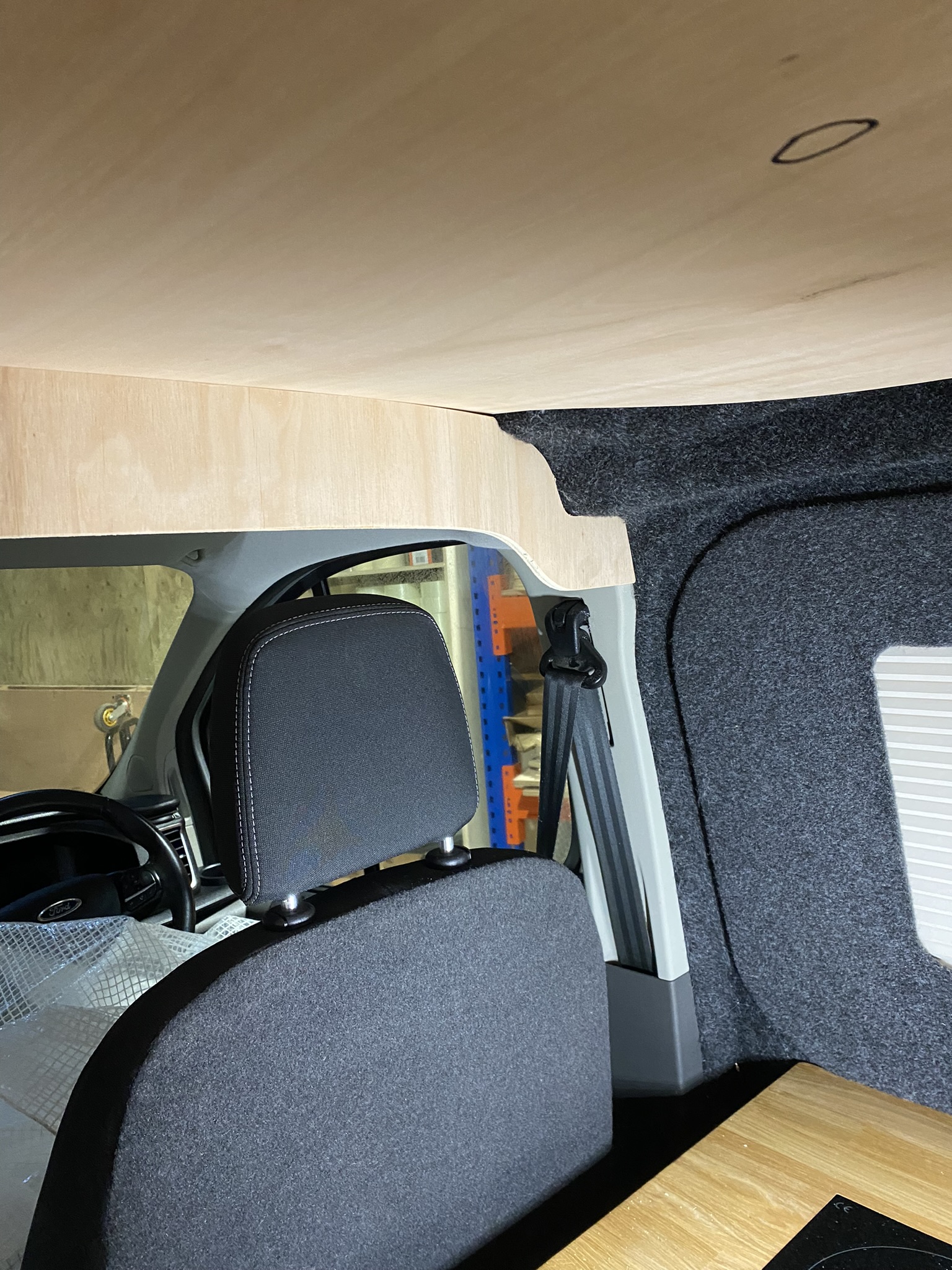

Headliners

There are various ways to install your headliner, we recommend seeking advise from professional conversion companies to achieve best results. Although there are ways to achieve a seamless finish, for easiest installation we recommend simply screwing. Firstly, cut your 6mm ply strips to length, then countersink screw to the ceiling bracing supports. Next, offer the headliner up, make adjustments and trim if necessary, then simply screw into place. Use small black pan heads; for symmetry screw in the centre of the slats and horizontally across perfectly straight.

• For VW T5/6 This floor requires a full length WIDE threshold and a side load extra steep door step trim cover. Please see Vanstyle.co.uk
• Other vans may also require Wide rear and steep side trims.
• Some floors and headliners may require slight trimming depending on ply-lining, insulation and carpet used.
• Vivaro/ Trafic/ Primstar – Vivaro mk2 2014-2018/ Trafic 2014< / Nissan Primstar 2022< / Nissan NV300 2014-2021/ Fiat Talento 2016-2020
